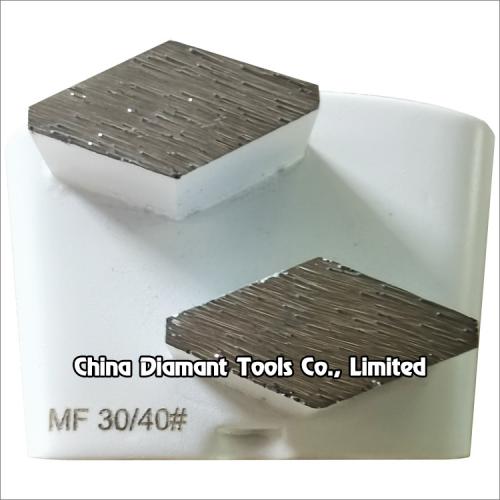

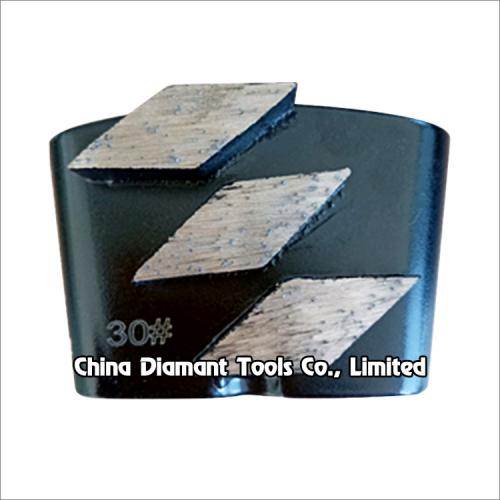

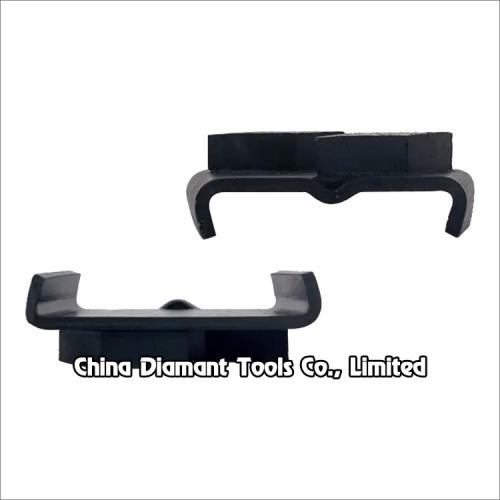

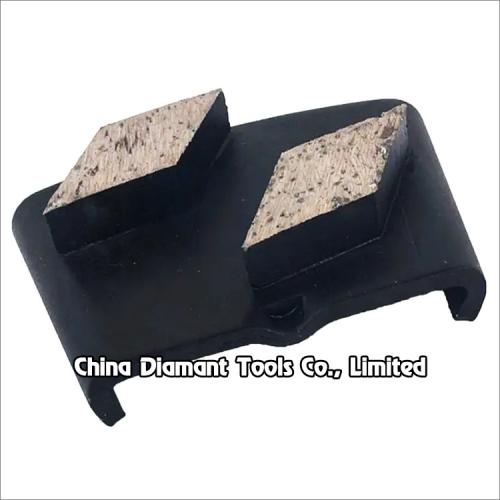

EZ change diamond grinding shoes floor pads for HTC grinders - parallelogram segments

item No : DGP-HTC-06
Segment type: metal bond, parallelogram shape
Segment size: 37*18*13mm
Segment No.: 1-2pcs
Diamond Grit: #6-#200(coarse, medium, smooth)
Bond: soft, medium, hard
Body: steel base
Material grinding: concrete/terrazzo/stone floor
Production process: high-frequency welded

EZ change diamond grinding shoes for HTC floor grinders - parallelogram segments


This type diamond grinding shoes floor grinding pads with 1 or 2pcs metal bond parallelogram segments are usually used on EZ change plate of HTC grinder, suitable for general (concrete, terrazzo, stone) floor grinding use, while mostly they are used for paint, glue, epoxy removal and floor coating.


Metal bond diamond segment has high strength, excellent wear resistance, and a low friction coefficient, it also has high grinding efficiency and low grinding force generates less heat in the grinding process.

The parallelogram segment is ideal for removing heavy coating, it is extremely aggressive leaving and deep to medium scratch pattern,  taking the floor from coarsely structured surface to pre-polishing.


We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.


For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).

Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.

Segment bond: soft, medium, hard.


Code No.

Segment Size/No.

Grit No.

Connection

DGP-HTC-06-1

37*18*13mm*1pc

#6 - #200

HTC EZ change plate

DGP-HTC-06-2

37*18*13mm*2pcs



The above specifications & photos are for reference, other specifications may be available as per demand.
