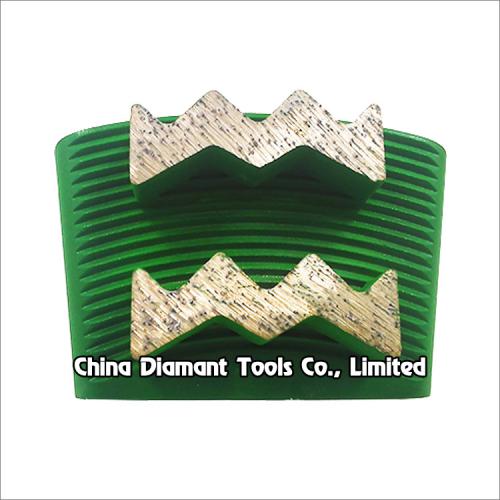

EZ change diamond grinding shoes for HTC floor grinders - mountain shape segments

item No : DGP-HTC-08
Segment type: metal bond, mountain shape
Segment size: 42x12mm
Segment No.: 1-2pcs
Diamond Grit: #6-#200(coarse, medium, smooth)
Bond: soft, medium, hard
Body: steel base
Material grinding: concrete/terrazzo/stone floor
Production process: high-frequency welded

Inquiry Now

Detailed Description

Inquiry Now

EZ change diamond grinding shoes for HTC floor grinders - mountain shape segments

This type diamond grinding shoes with 1 or 2pcs metal bond mountain shape segments are usually used on EZ change plate of HTC floor grinder, suitable for general (concrete, terrazzo, stone) floor grinding use, while mostly they are used for paint, glue, epoxy removal and floor coating.

Metal bond diamond segment has high strength, excellent wear resistance, and a low friction coefficient, it also has high grinding efficiency and low grinding force generates less heat in the grinding process.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).

Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.

Segment bond: soft, medium, hard.

Code No.	Segment Size/No.	Grit No.	Connection
DGP-HTC-08-1	42x12mm*1pc	#6 - #200	HTC EZ change plate
DGP-HTC-08-2	42x12mm*2pcs	#6 - #200	HTC EZ change plate

The above specifications & photos are for reference, other specifications may be available as per demand.
