EZ change PCD grinding shoe for HTC floor grinders - 5pcs PCDs 1 diamond segment

item No : DGP-HTC-P03
Segment type: PCD+diamond
PCD specification: 1/4 round*5pcs
Diamond segment: 40x10x5mm*1pc
Body: steel base
Connection: HTC EZ change plate
Material grinding: concrete/terrazzo floor

Inquiry Now

Detailed Description

Inquiry Now

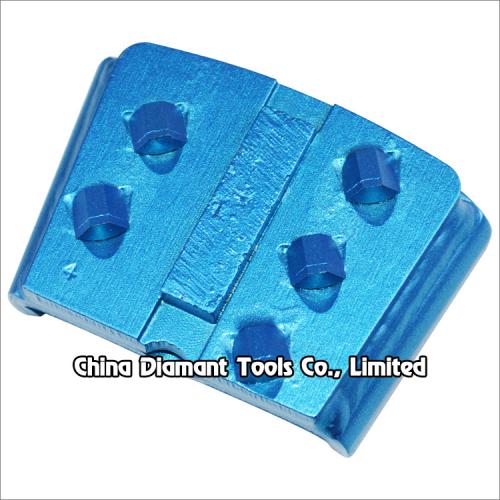

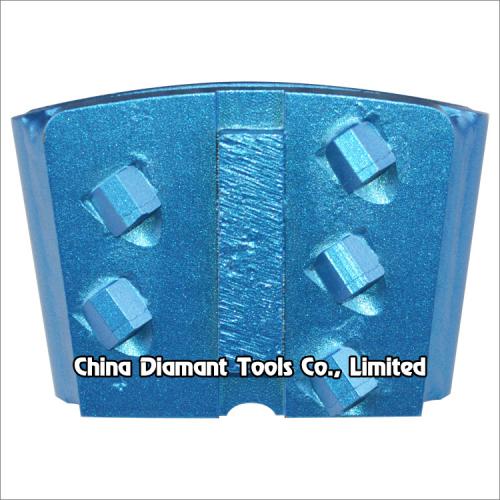

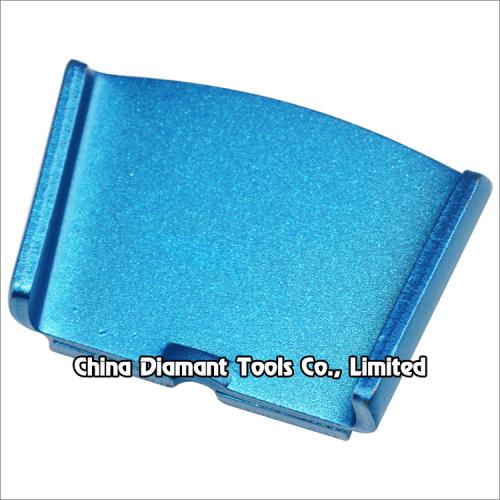

EZ change PCD grinding shoe for HTC floor grinders

5pcs 1/4 round PCD segments + 1pc bar shape diamond segment

This PCD grinding shoe with 5pcs PCDs & 1pc assisted diamond segment is usually used on EZ change plate of HTC floor grinders for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.

It is made from the highest quality poly crystalline diamonds and ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.

With the diamond trailer bar this tool is designed to remove coatings over smooth or toweled surfaces and will not damage the concrete. Diamond bar acts as a stabilizer and depth guide to reduce the gauging of the floor caused by the aggressive PCD segments.

Available in a left or right orientation.

Code No.	PCD Spec.	Diamond Segment	Connection
DGP-HTC-P05	1/4 round*5pc	40x10x5mm*1pc	HTC EZ change plate

The above specifications & photos are for reference, other specifications may be available as per demand.
