EZ change PCD grinding shoes for HTC floor grinders - 2pcs PCDs 1pc diamond segment

item No : DGP-HTC-P03
Segment type: PCD + Diamond
PCD size: 1/4 or 1/3 or 1/2 round
PCD No.: 2pcs
Diamond Segment: 40x10x5mm*1pc
Body: steel base
Connection: HTC EZ change plate
Material grinding: concrete/terrazzo floor

Inquiry Now

Detailed Description

Inquiry Now

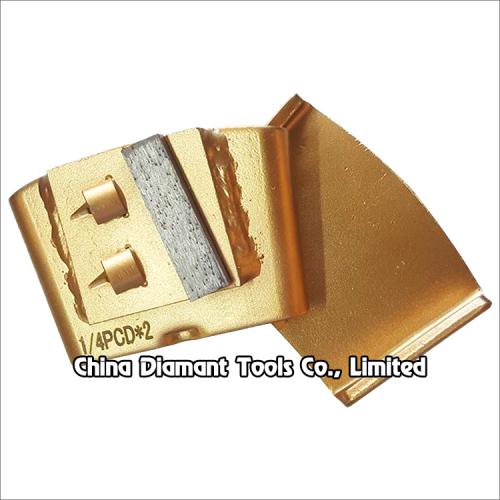

EZ change PCD grinding shoes for HTC floor grinders

2pcs PCD segments + 1pc bar shape diamond segment

This type PCD grinding shoes with 2pcs 1/4 or 1/3 or 1/2 round PCD & 1pc assisted diamond segment are usually used on EZ change plate of HTC floor grinders for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.

It is made from the highest quality poly crystalline diamonds and ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.

With the diamond trailer bar this tool is designed to remove coatings over smooth or toweled surfaces and will not damage the concrete. Diamond bar acts as a stabilizer and depth guide to reduce the gauging of the floor caused by the aggressive PCD segments.

Available in a left or right orientation.

Code No.	PCD Spec.	Diamond Segment	Connection
DGP-HTC-P03-1	1/4 round*2pcs	40x10x5mm*1pc	HTC EZ change plate
DGP-HTC-P03-2	1/3 round*2pcs	40x10x5mm*1pc
DGP-HTC-P03-3	1/2 round*2pcs	40x10x5mm*1pc

The above specifications & photos are for reference, other specifications may be available as per demand.
