EZ change PCD grinding shoes for HTC floor grinders - 2 PCDs 2 round diamond segments

item No : DGP-HTC-P02
Segment type: PCD + Diamond
PCD spec.: 1/2 round*2pcs
Segment spec.: Dia.20mm*2pcs
Body: steel base
Connection: HTC EZ change plate
Material grinding: concrete/terrazzo floor

Inquiry Now

Detailed Description

Inquiry Now

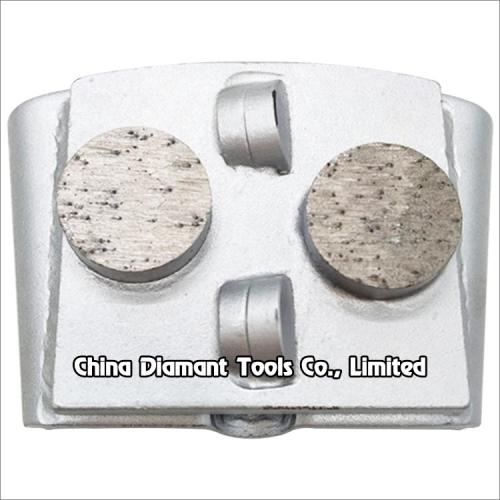

EZ change PCD grinding shoe for HTC floor grinders

2pcs 1/2 round PCD segments + 2pcs round diamond segments

This PCD grinding shoe with 2pcs PCD segments & 2pcs assisted round diamond segments is usually used on EZ change plate of HTC floor grinders for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.

It is made from the highest quality poly crystalline diamonds and ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.

With the 2 diamond trailers this tool is designed to remove coatings over smooth or toweled surfaces and will not damage the concrete. Diamond segments acts as a stabilizer and depth guide to reduce the gauging of the floor caused by the aggressive PCD segments.

Available in a left or right orientation.

Code No.	PCD Spec.	Diamond Segment	Connection
DGP-HTC-P02	1/2 round*2pc	Dia.20x5mm*2pcs	HTC EZ change plate

The above specifications & photos are for reference, other specifications may be available as per demand.
