Trapezoid diamond grinding shoes concrete terrazzo floor pads - round segments

item No : TR-MET-02
Segment type: metal bond
Segment shape: round column
Segment size: dia.18x13mm,dia.20x12mm
Segment No.: 1-3pcs
Diamond Grit: #6-#200(coarse, medium, smooth)
Bond: soft, medium, hard
Body: steel base
Material grinding: concrete/terrazzo/stone floor
Production process: high-frequency welded

Inquiry Now

Detailed Description

Inquiry Now

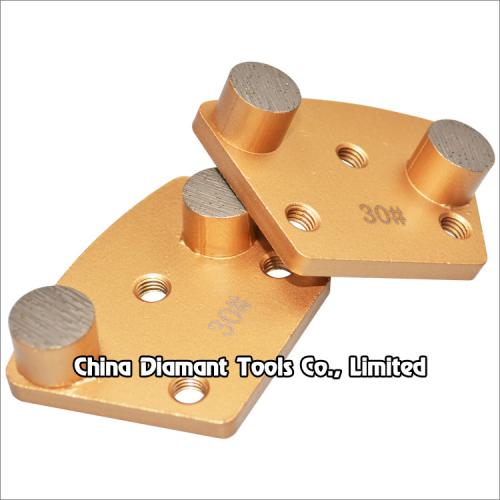

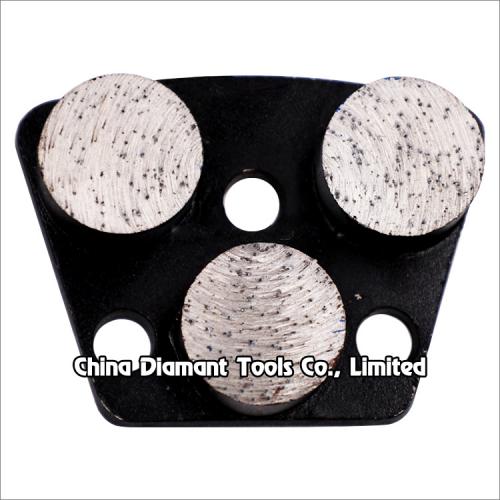

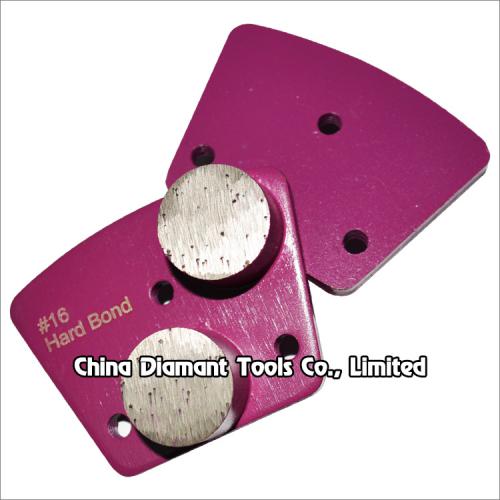

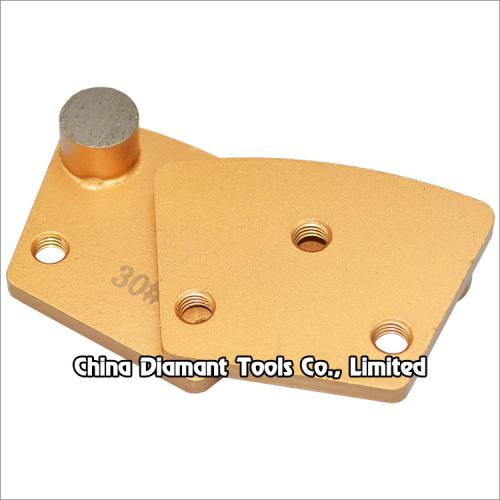

Trapezoid diamond grinding shoes / concrete floor grinding pads - round segments

Trapezoid diamond grinding shoes with round segments 1-3pcs, which is one of the floor preparation tools used on floor grinders, designed for floor grinding (leveling uneven spots or joints) and quick removing thin epoxy coatings, glue or other materials on floor surface, it is extremely aggressive leaving and deep to medium scratch pattern, take the floor from coarsely structured surface to pre-polishing.

It's easy to deal with various rough surface, smooth and unbroken edges, low grinding resistance and high efficiency.

Application: concrete, terrazzo grinding and renovating.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).

Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200.

Segment bond: soft, medium, hard.

Code No.	Segment Size/No.	Grit No.	Base Specification
TR-MET-02-1-18	Ø18x13mm*1pc	#6 - #200	3 holes (M6/9mm/bare holes) or as per demand
TR-MET-02-1-25	Ø25x13mm*1pc
TR-MET-02-2-18	Ø18x13mm*2pcs
TR-MET-02-2-25	Ø25x13mm*2pcs
TR-MET-02-3-18	Ø18x13mm*3pcs
TR-MET-02-3-25	Ø25x13mm*3pcs

The above specifications & photos are for reference, other specification may be available as per demand.

Trapezoid diamond grinding shoes concrete terrazzo floor pads - round segments
