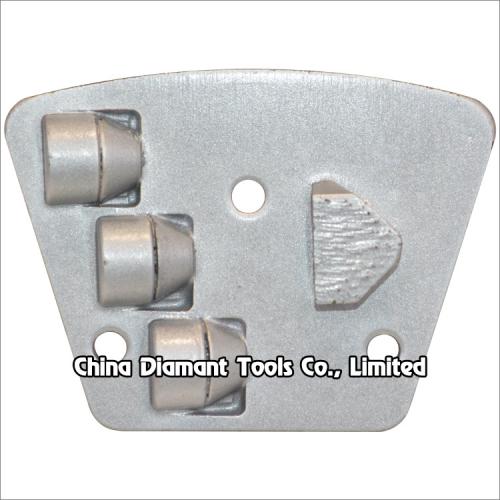

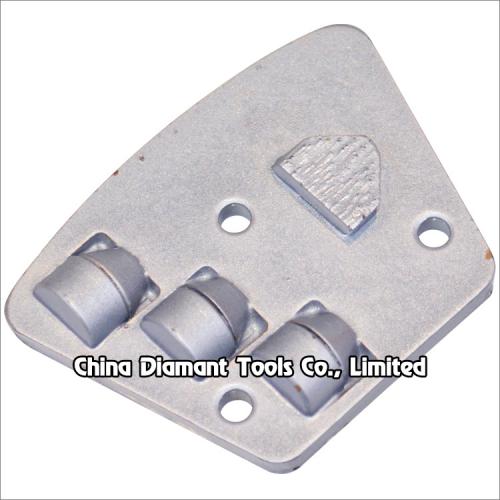

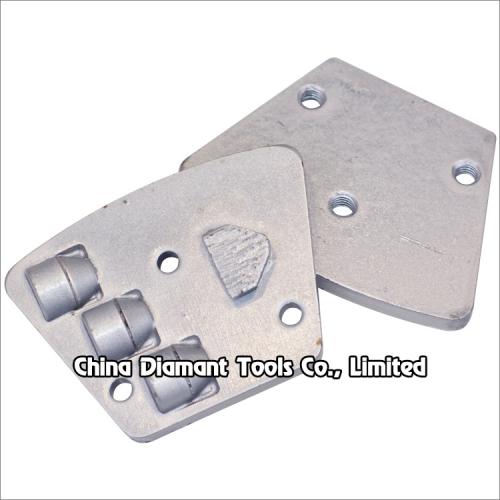

Trapezoid PCD grinding shoes concrete terrazzo floor pads - 3 half round PCDs 1 arrow segment
Segment type: PCD + diamond segment
PCD size: 1/2 round*3pcs
Diamond segment: arrow shape,H5mm*1pc
Body: steel base
Material grinding: concrete/terrazzo floor
Trapezoid PCD grinding shoes / concrete floor grinding pads - 3pcs half round PCDs + 1 arrow diamond segment
This PCD trapezoid grinding shoe with 3 half round PCD & 1 arrow diamond segment is designed for concrete floor restoration professional, for quick removal of most coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.
This grinding pad is ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.
Used on universal floor grinding machine.
Available in a left or right orientation.
|
Code No. |
PCD Size/No. |
Diamond Segment |
Base Specification |
|
DGP-TRA-P06 |
1/2 Round*3pcs |
H5mm*1pc #30 Arrow shape |
3 holes (M6/9mm/bare holes) or as per demand |
The above specifications & photos are for reference, other specification may be available as per demand.
