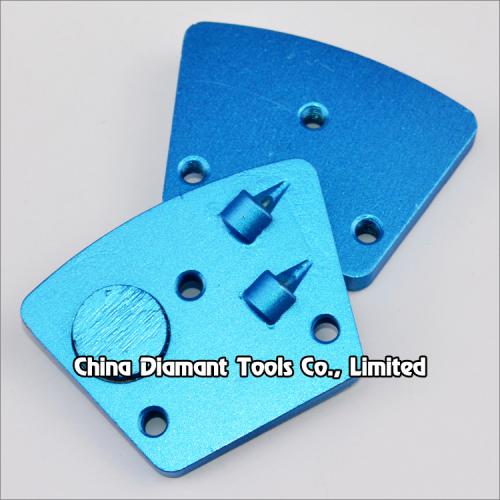

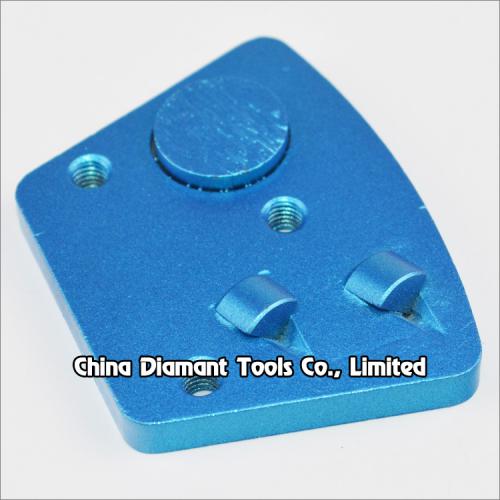

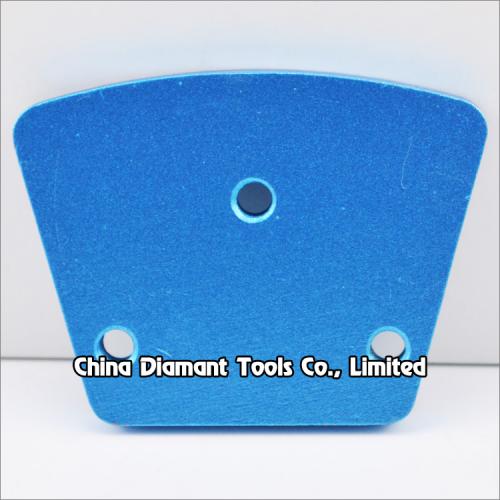

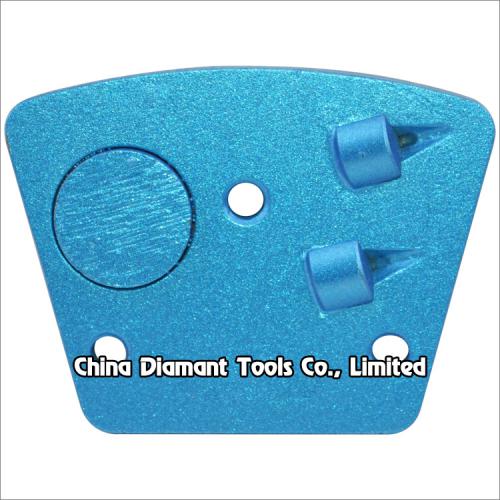

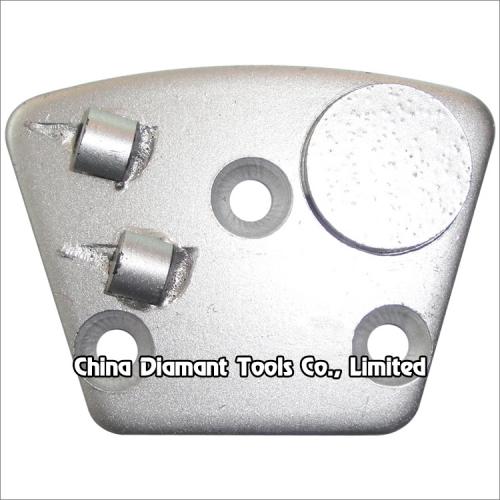

Trapezoid PCD diamond grinding shoes concrete floor polishing pads - 2pcs PCD segments & 1 diamond segment
Trapezoid grinding pad
PCD: 1/4, 1/3, or 1/2 round*2pcs
Diamond segment: D25xH5mm*1pc,#30
Rotation: clockwise or anticlockwise (left or right)
Holes: M6*3(SASE), 9mm*3(magnetic), or 6 holes(Blastrac)
Dry or wet use
Trapezoid PCD diamond grinding shoes concrete floor polishing pads - 2pcs PCD segments & 1 diamond segment
PCD diamond grinding shoes concrete floor polishing pads with 2pcs PCD segments and 1pc assisted diamond segment used on SASE, Blastrac or other floor grinders for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.
They are made from the high quality poly crystalline diamonds and ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.
|
Code No. |
PCD Size & No. |
Diamond Segment |
|
DGS-TRA-P04-1 |
1/4 round*2pcs |
D25xH5mm*1pc,#30 |
| DGS-TRA-P04-2 | 1/3 round*2pcs | D25xH5mm*1pc,#30 |
| DGS-TRA-P04-3 | 1/2 round*2pcs | D25xH5mm*1pc,#30 |
The above specifications & photos are for reference, other specification may be available as per demand.
