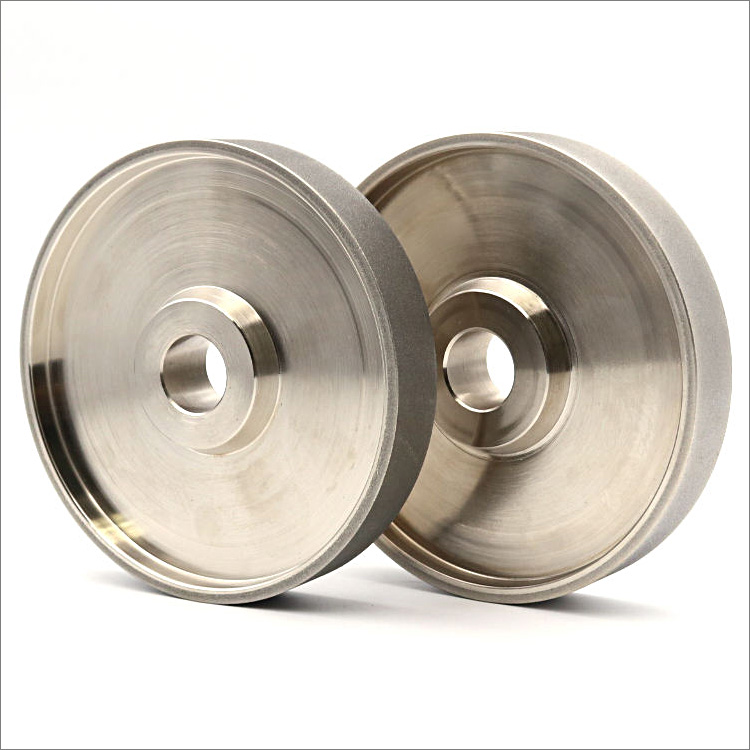

Electroplated diamond
parallel grinding wheels polishing sharpening discs for
tungsten steel alloy glass
These electroplated diamond parallel grinding wheels are mainly
used for grinding hard alloy measuring tools, foot steel, high-speed
steel, alloy steel, glass, gemstones, jadeite amber beeswax raw
stones, magnetic materials, ceramics, molds, etc.
The high quality
abrasives deliver smooth and consistent material removal, the
electroplated premium quality diamond sand is evenly attached to the
steel body and wear-resistant, not easy to drop, ensure long-lasting
durability and sharpness.
Wet or dry use, wet working may prolong
the working life.
Diameter: 100mm, 150mm, 200mm.

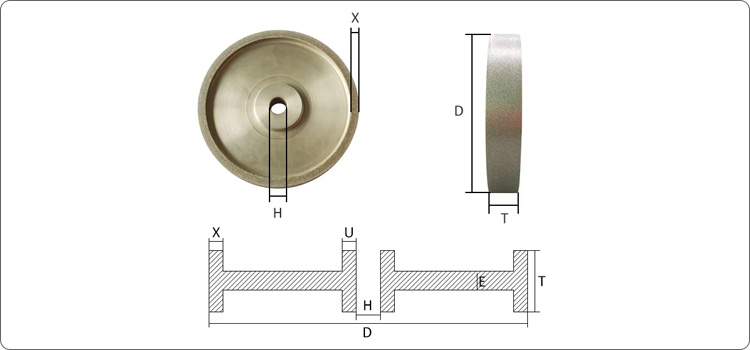

Diamond coated thickness(T): 20mm, 25mm, 30mm, 35mm, 38mm(or as per
demand).
Diamond grit: #80, #100, #120, #150, #180, #240, #320, #500,
#600, #800, other grit is possible available.
Bore size: 20mm, 25.4mm(or as per demand).
|
Code No. |
Diameter |
Diamond Grit |
|
DGW-EL13-100 |
(4")100mm |
#80 - #800 |
|
DGW-EL13-150 |
(6")150mm |
#80 - #800 |
|
DGW-EL13-200 |
(8")200mm |
#80 - #800 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
