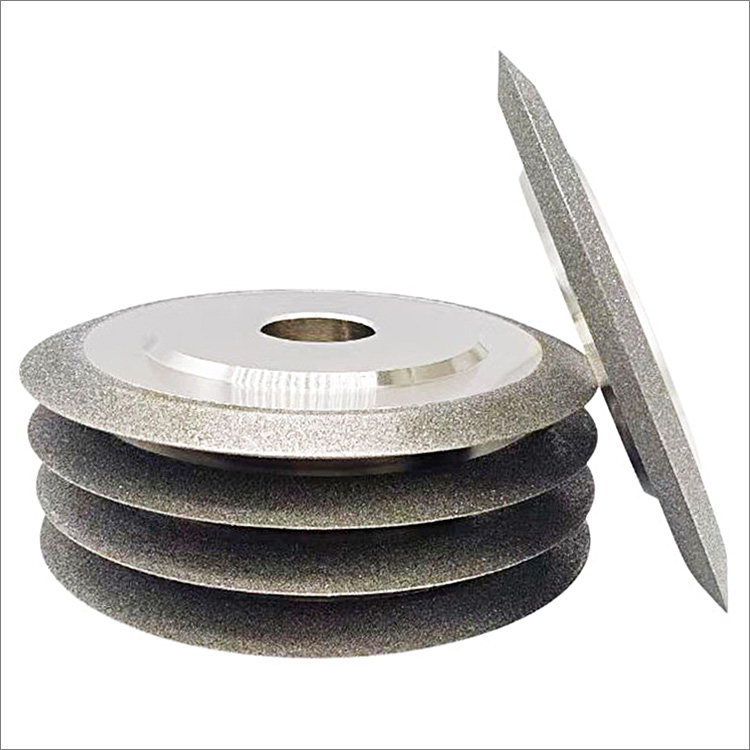

Electroplated
V groove double bevel angle 45° 60° 90° diamond grinding wheels for
tungsten carbide slotted
These double bevel angle
45° 60° 90° electroplated diamond grinding wheels are mainly used for
cutting grinding
sharpening various materials with high temperature hardness and low
thermal conductivity, such as tungsten steel milling cutters,
high-speed steel, tool steel, high alloy quenched steel, chromium
steel, nickel alloy steel, powder metallurgy diamond, and
high-temperature alloys, also suitable for glass, tiles, precious
stones, magnetic materials, ceramics, molds and other materials edge
grinding and chamfering.

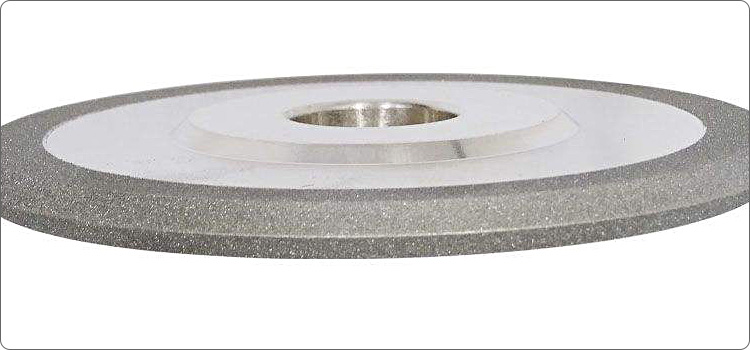

The wheels deliver smooth and consistent material removal, the
electroplated premium quality diamond sand is evenly attached to the
steel body and wear-resistant, not easy to drop, ensure long-lasting
durability and sharpness.

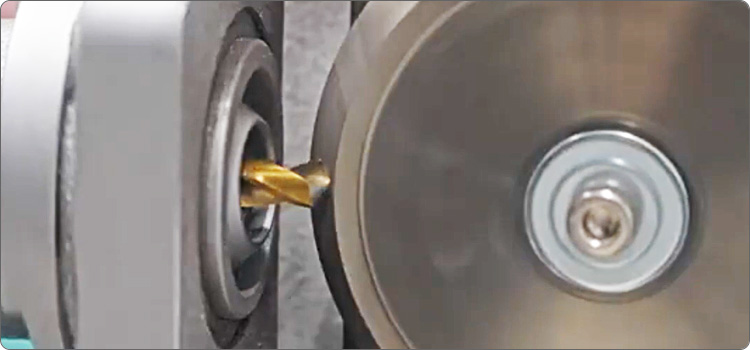

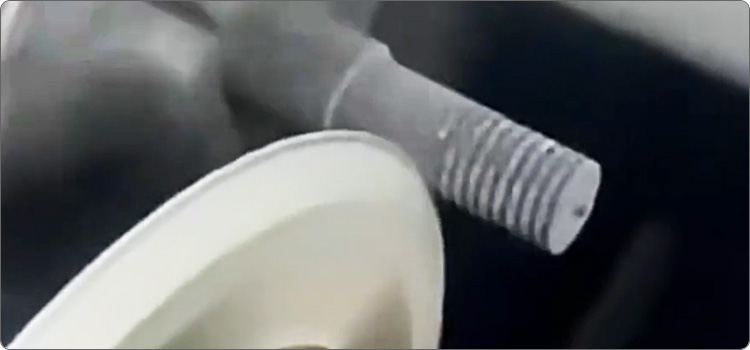

Suitable for use with
bench grinders, angle grinders, and electric drills.
Wet or dry use, wet working may prolong
the working life.

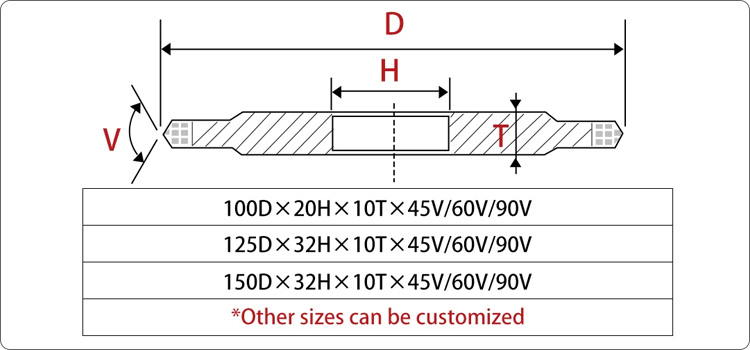

Diameter: 100mm, 125mm, 150mm.
Angle degree: 30 degree, 45 degree, 60 degree, 90 degree (other
degree is possible available).
Diamond coated height: 10mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400,
#600, the other grit is possible available.
Bore size: 20mm(100mm), 32mm(125mm/150mm).
|
Code No. |
Diameter |
Diamond Grit |
|
DGW-EL09-100 |
(4")100mm |
#80 - #600 |
|
DGW-EL09-125 |
(5")125mm |
#80 - #600 |
|
DGW-EL09-150 |
(6")150mm |
#80 - #600 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
