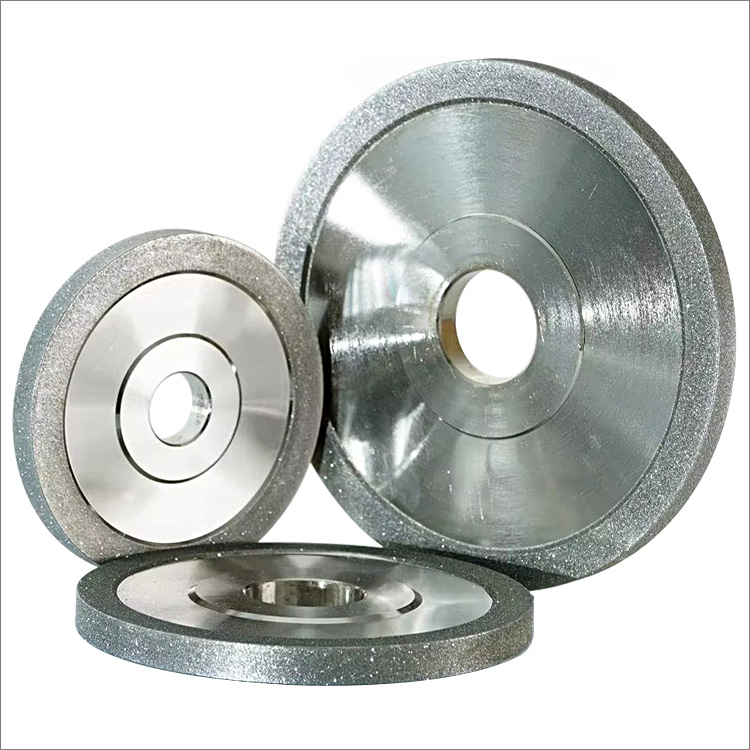

Electroplated
diamond grinding wheels abrasive polishing discs for tungsten
steel carbide CBN milling cutters
This electroplated type diamond wheels are mainly applicable to
small side grinding machines or grinders for grinding sharpening
hard alloy, tungsten steel milling cutters, also for glass, tiles,
precious stones, magnetic materials, ceramics, molds and other
materials edge grinding and chamfering.
The high quality
abrasives deliver smooth and consistent material removal, the
electroplated premium quality diamond sand is evenly attached to the
steel body and wear-resistant, not easy to drop, ensure long-lasting
durability and sharpness.
Wet or dry use, wet working may prolong
the working life.

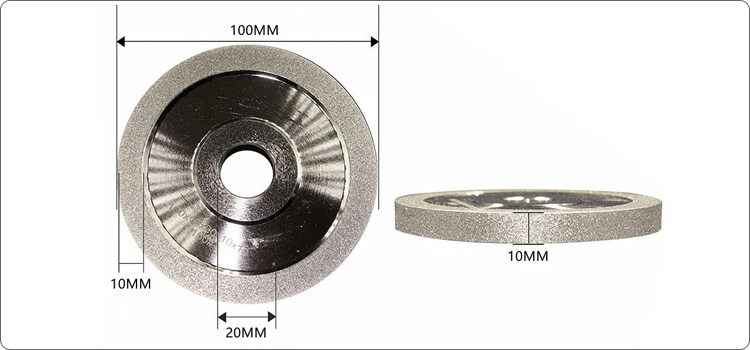

Diameter: 60mm, 78mm, 100mm, 125mm, 150mm, 180mm, 200mm.
Diamond coated width: 10mm.
Diamond coated height: 10mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400,
#600, the other grit is possible available.
Bore size: 12.7mm/16mm(78mm), 20mm(60mm/100mm), 32mm(125mm/150/180/200mm).
|
Code No. |
Diameter |
Diamond Grit |
|
DGW-EL07-060 |
(2.33")60mm |
#80 - #600 |
|
DGW-EL07-078 |
(3")78mm |
#80 - #600 |
|
DGW-EL07-100 |
(4")100mm |
#80 - #600 |
|
DGW-EL07-125 |
(5")125mm |
#80 - #600 |
|
DGW-EL07-150 |
(6")150mm |
#80 - #600 |
|
DGW-EL07-180 |
(7")180mm |
#80 - #600 |
|
DGW-EL07-200 |
(8")200mm |
#80 - #600 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
