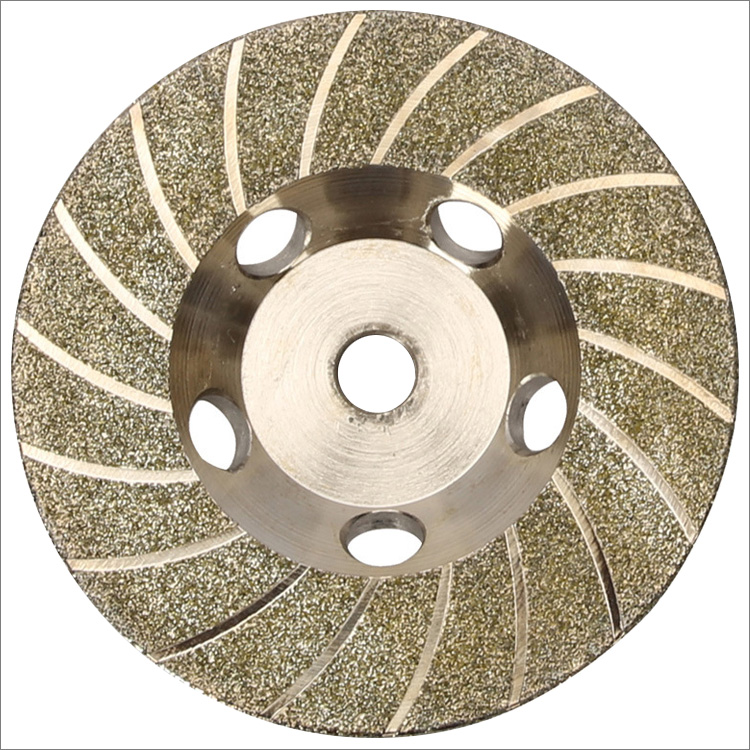

Electroplated
diamond grinding cup wheels turbo coated discs for marble quartz
soft stone ceramic tiles
This type electroplated diamond grinding cup wheels are used on
angle grinders for grinding polishing a wide range of materials such
as concrete, bricks, marble, quartz, soft stone, ceramic, porcelain tile,
etc.
Wet or dry use, wet working may prolong
the working life.
Diameter: 100mm, 115mm, 125mm.
Diamond grit: regular grit #40(rough), #80(medium), #150(smooth),
the other grit is possible available.
Diamond coated width: 25mm.
Thickness: 4.5mm.
Bore size: M12, M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond Grit |
|
DGCW-EL05-100 |
(4")100mm |
#40, #80, #150 |
|
DGCW-EL05-115 |
(4.5")115mm |
#40, #80, #150 |
|
DGCW-EL05-125 |
(5")125mm |
#40, #80, #150 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
