Electroplated
diamond grinding cup wheels bowl shape sanding polishing milling discs
for tungsten carbide metal

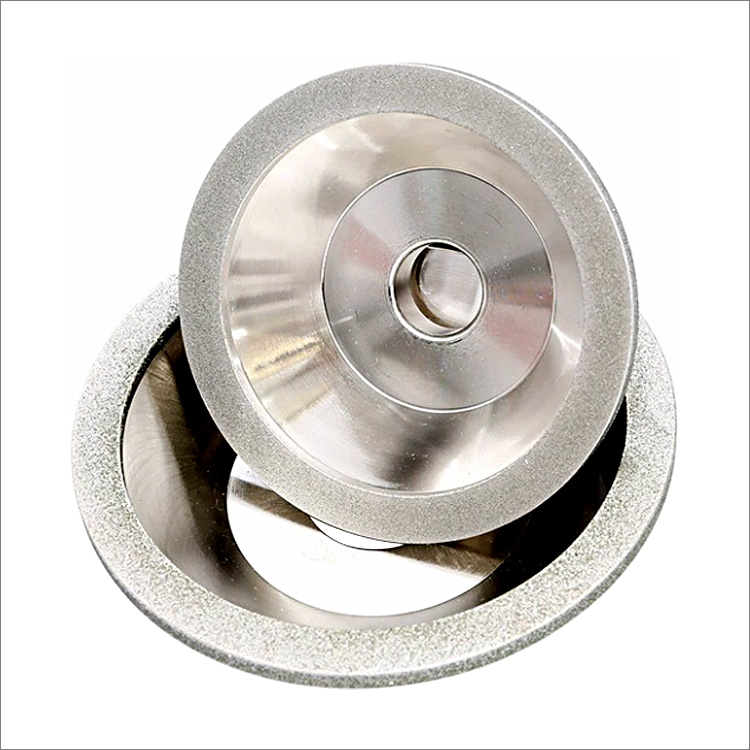

This electroplated type diamond cup
wheels bowl shape sanding polishing milling discs are used on angle grinders
or grinding machines for grinding sanding milling polishing sharpening
a wide range of materials such as tungsten steel, metal, carbide,
alloy, glass,
carbon fibre, marble, quartz, soft stone, jade, ceramic, porcelain
tile, etc.
This high quality
abrasive delivers smooth and consistent material removal, ideal for
precision grinding of hard materials, works with most sharpening
machines for tungsten carbide, and the bowl shaped design enhances
grinding efficiency on curved surfaces, also the electroplated
diamond ensures long-lasting durability and sharpness.
Wet or dry use, wet working may prolong
the working life.

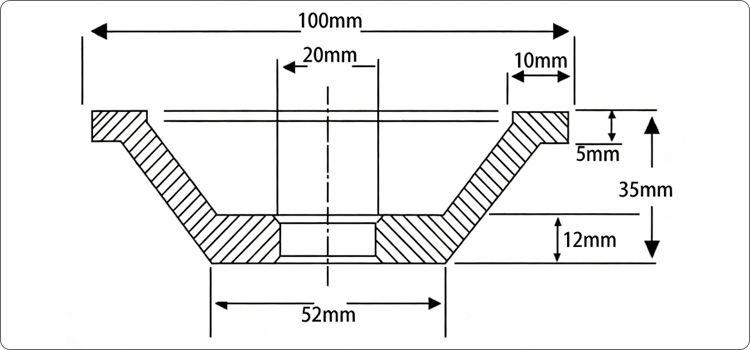

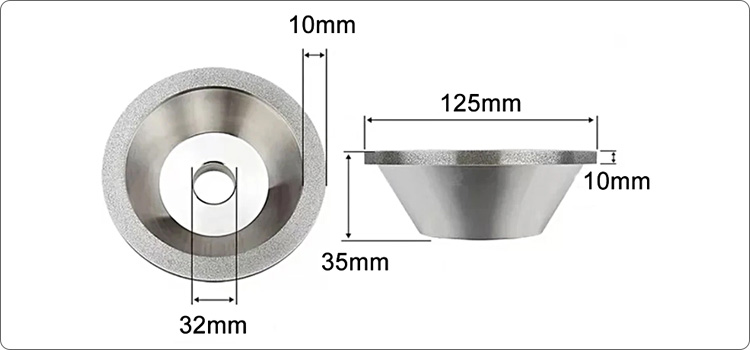

Diameter: 100mm, 125mm, 150mm.
Steel thickness: 35mm.
Diamond coated width: 10mm.
Diamond coated height: 5mm or 10mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400,
#600, the other grit is possible available.
Bore size: 20mm(100mm), 32mm(125mm/150mm) (other bore size is possible available).
|
Code No. |
Diameter |
Diamond Grit |
|
DGCW-EL06-100 |
(4")100mm |
#80 - #600 |
|
DGCW-EL06-125 |
(5")125mm |
#80 - #600 |
|
DGCW-EL06-150 |
(6")150mm |
#80 - #600 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
