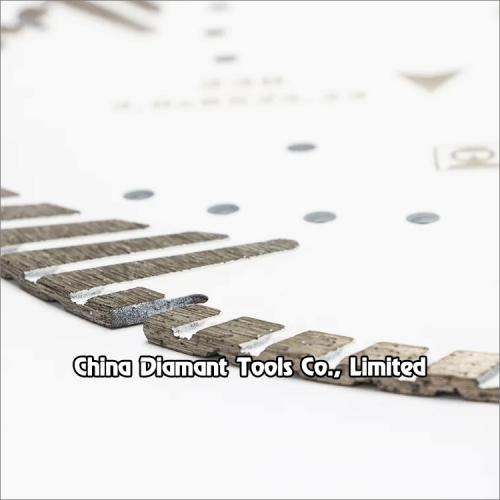

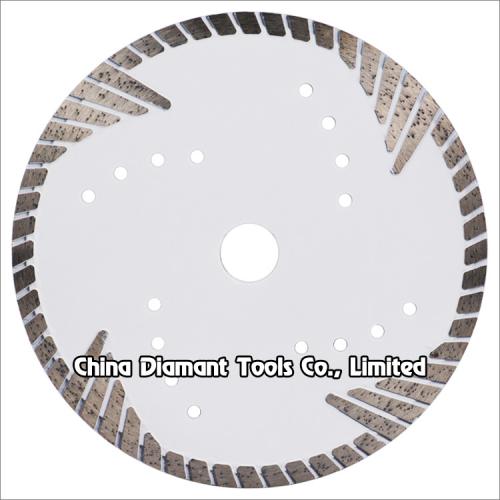

Diamond dry cutting saw blades - hot-press sintered, wide turbo rim segments with protective teeth
Diameter: 105-230mm
Bore: 20/22.23mm
Segment height: 8mm
Segment type: wide turbo rim with protective teeth
Production process: hot-press sintered
Diamond dry cutting saw blades - hot-press sintered, wide turbo rim segments with protective teeth
Hot press sintered diamond saw blades with wide turbo rim segments and outspread protective teeth for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.
Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..
Dry or wet use, water coolant is benefit for longer cutting life.
Usually used on: angle grinders, table saws, handheld saw machines.
Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.
Production process: hot-press sintered.
|
Code No. |
Diameter |
Segment size (W*H)mm |
Protective Teeth No. |
|
DCHS-14-105 |
105mm(4") |
2.4*8mm | 3 |
|
DCHS-14-115 |
115mm(4.5") |
2.4*8mm | 3 |
|
DCHS-14-125 |
125mm(5") |
2.4*8mm |
3 |
|
DCHS-14-150 |
150mm(6") |
2.6*8mm |
4 |
|
DCHS-14-180 |
180mm(7") |
2.6*8mm |
4 |
|
DCHS-14-200 |
200mm(8") |
2.8*8mm |
x |
|
DCHS-14-230 |
230mm(9") |
3.0*8mm |
5 |
The above specifications & photos are for reference, other specification may be available as per demand.
