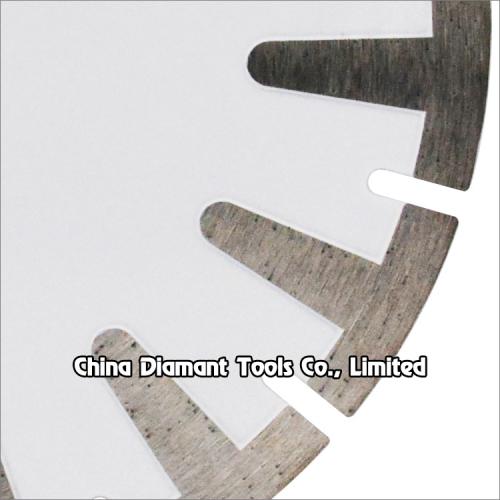

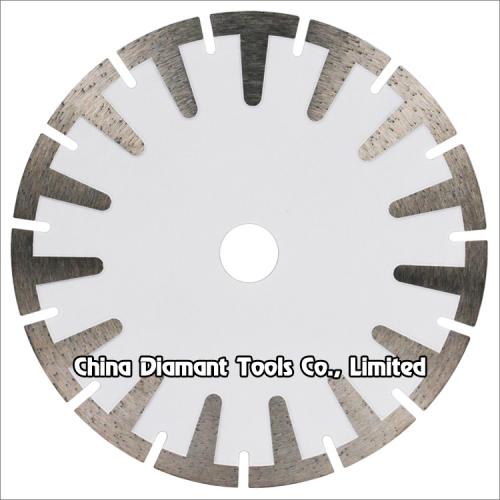

Diamond dry cutting saw blades - hot-press sintered, T shape segments
Diameter: 180mm
Bore: 20/22.23mm
Segment height: 15mm
Segment type: T shape segments
Production process: hot-press sintered
Diamond dry cutting saw blades - hot-press sintered, T shape segments
Hot press sintered diamond saw blades with T shape segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.
The blade is usually for stone curved edge cutting and grinding in Egypt & other countries in middle-east.
Dry or wet use, water coolant is benefit for longer cutting life.
Usually used on: angle grinders, table saws, handheld saw machines.
Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.
Production process: hot-press sintered.
|
Code No. |
Diameter |
Segment size (W*H)mm |
|
DCHS-06-105 |
105mm(4") |
x |
|
DCHS-06-115 |
115mm(4.5") |
x |
|
DCHS-06-125 |
125mm(5") |
x |
|
DCHS-06-150 |
150mm(6") |
x |
|
DCHS-06-180 |
180mm(7") |
2.6*8mm |
|
DCHS-06-200 |
200mm(8") |
x |
|
DCHS-06-230 |
230mm(9") |
x |
The above specifications & photos are for reference, other specification may be available as per demand.
