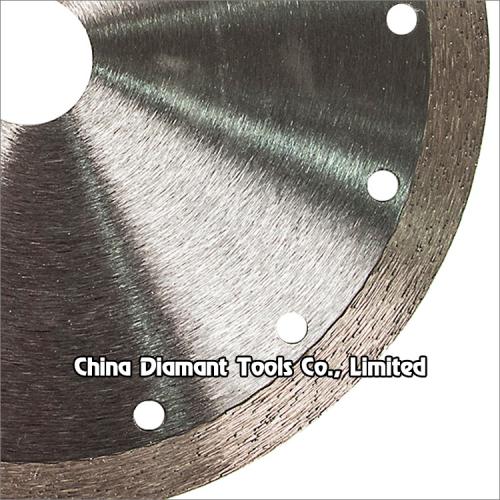

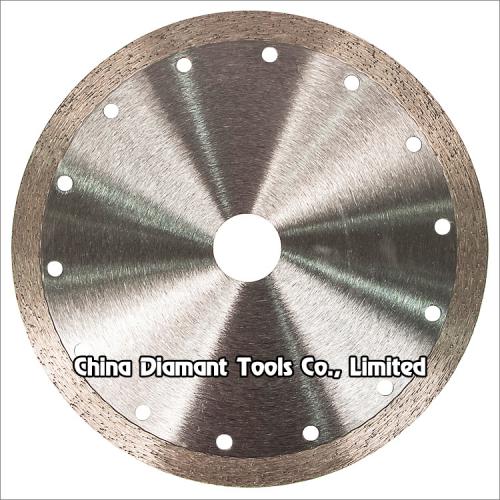

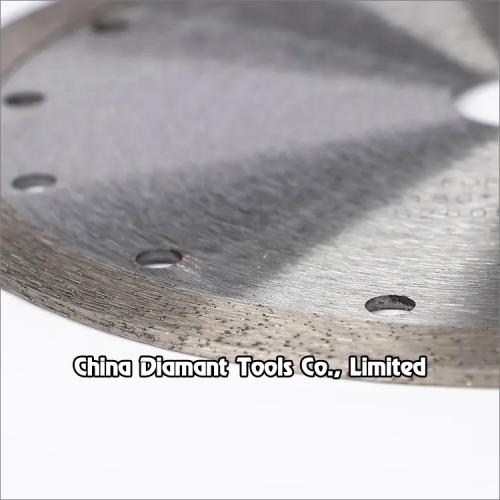

Diamond dry cutting saw blades - hot-press sintered, continuous rim segments

item No : DCHS-08
Diameter: 105-300mm
Bore: 20/22.23mm
Segment height: 10mm
Segment type: continuous rim
Production process: hot-press sintered
Inquiry Now
Detailed Description

Diamond dry cutting saw blades - hot-press sintered, continuous rim segments


Hot press sintered diamond saw blades with continuous rim segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.

Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.


Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.

Production process: hot-press sintered.


Code No.

Diameter

Segment size

(W*H)mm

DCHS-08-105

105mm(4")

2.0*10mm

DCHS-08-115

115mm(4.5")

2.0*10mm

DCHS-08-125

125mm(5")

2.2*10mm

DCHS-08-150

150mm(6")

2.4*10mm

DCHS-08-180

180mm(7")

2.6*10mm

DCHS-08-200

200mm(8")

2.6*10mm

DCHS-08-230

230mm(9")

2.8*10mm

DCHS-08-250

250mm(10")

2.8*10mm

DCHS-08-300 300mm(12") 3.0*10mm


The above specifications & photos are for reference, other specification may be available as per demand.
