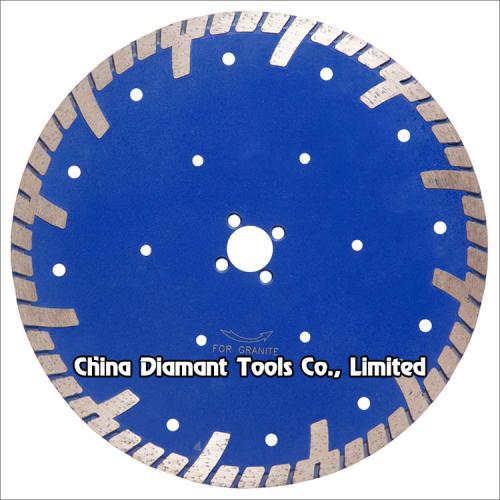

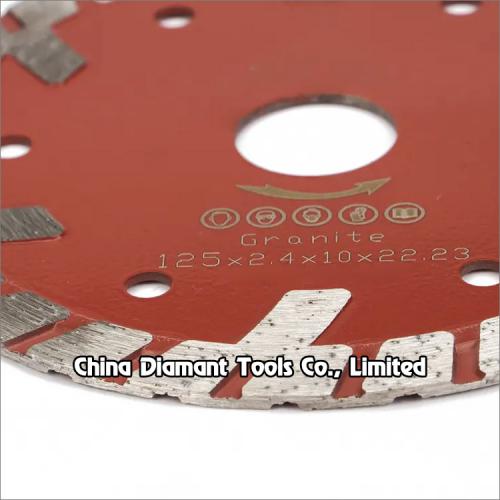

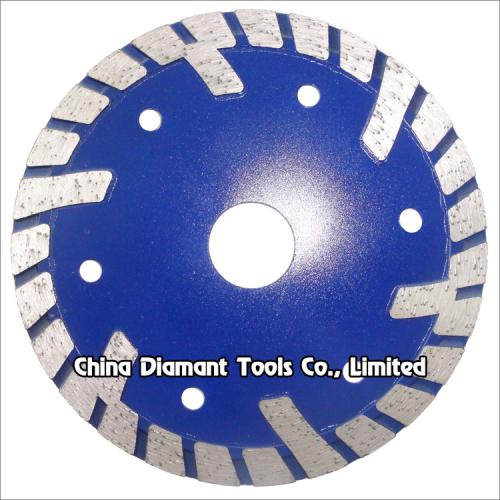

Diamond dry cutting saw blades - wide turbo rim segments with protective teeth

item No : DCHS-12
Diameter: 105-230mm
Bore: 20/22.23mm
Segment height: 10mm
Segment type: wide turbo rim with protective teeth
Production process: hot-press sintered
Inquiry Now
Detailed Description

Diamond dry cutting saw blades - hot-press sintered, wide turbo rim segments with protective teeth


Hot press sintered diamond saw blades with wide turbo rim & protective teeth segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.


Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.


Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.

Production process: hot-press sintered.


Code No.

Diameter

Segment size

(W*H)mm

Protective teeth

No.

DCHS-12-105

105mm(4")

2.4*10mm

5

DCHS-12-115

115mm(4.5")

2.4*10mm

6

DCHS-12-125

125mm(5")

2.4*10mm

6

DCHS-12-150

150mm(6")

2.6*10mm

8

DCHS-12-180

180mm(7")

2.8*10mm

8

DCHS-12-200

200mm(8")

2.8*10mm

10

DCHS-12-230

230mm(9")

3.0*10mm

12


The above specifications & photos are for reference, other specification may be available as per demand.
