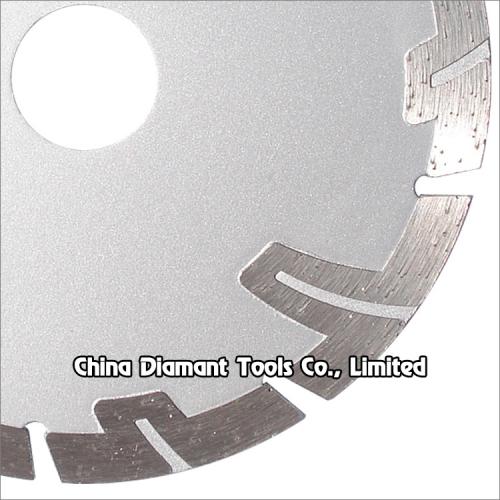

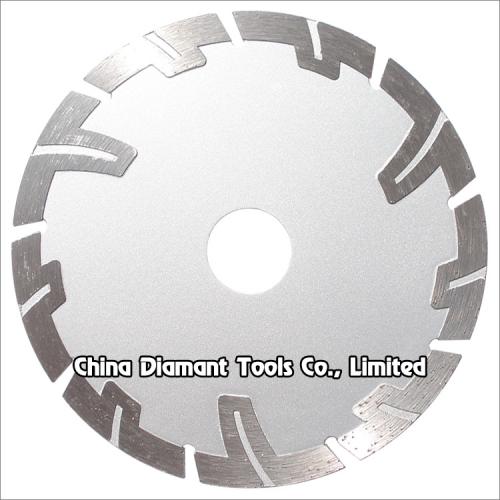

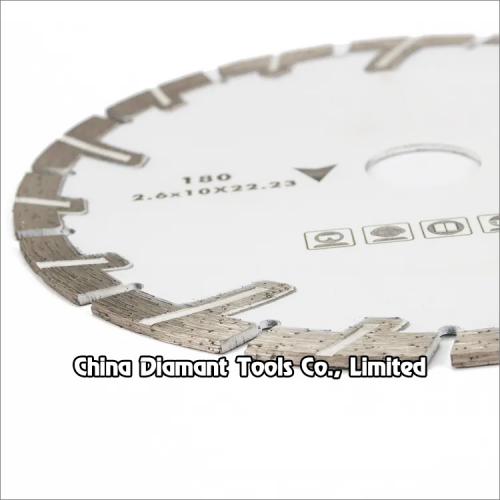

Diamond dry cutting saw blades - diagonal segments with groove & protective Teeth

item No : DCHS-07
Diameter: 125-230mm
Bore: 20/22.23mm
Segment height: 8mm
Segment type: diagonal with protective Teeth
Production process: hot-press sintered
Inquiry Now
Detailed Description


Diamond dry cutting saw blades - hot-press sintered, diagonal segments with groove & protective Teeth



Hot press sintered diamond saw blades with diagonal grooved segments & protective teeth for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.


Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.


Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.

Production process: hot-press sintered.



Code No.

Diameter

Segment size

(W*H)mm

DCHS-07-105

105mm(4")

x

DCHS-07-115

115mm(4.5")

x

DCHS-07-125

125mm(5")

2.0*8mm

DCHS-07-150

150mm(6")

2.2*8mm

DCHS-07-180

180mm(7")

2.2*8mm

DCHS-07-200

200mm(8")

2.4*8mm

DCHS-07-230

230mm(9")

2.6*8mm


The above specifications & photos are for reference, other specification may be available as per demand.
