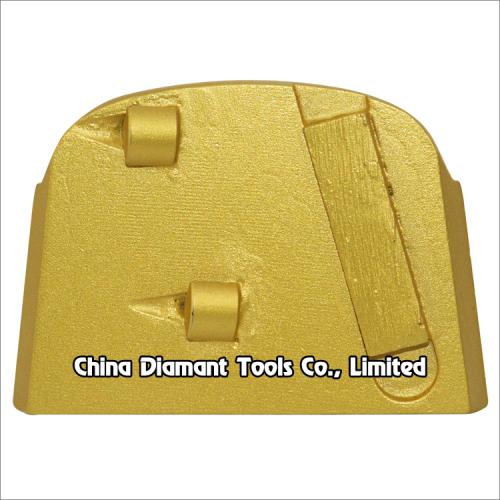

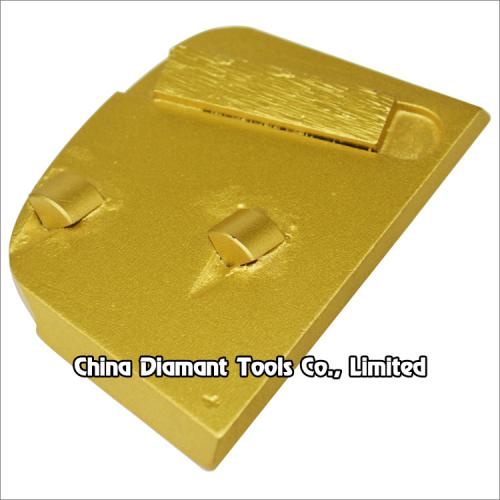

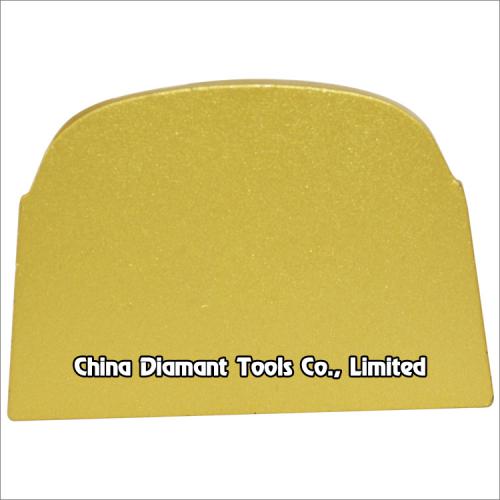

PCD concrete grinding pad for Lavina floor grinders with diamond segment

item No : DGP-LAV-P04
Segment type: PCD + diamond
PCD size: 1/4 round*2pcs
Diamond segment: 40x10x5mm*1pc #30
Body: steel base
Connection: Lavina quick lock plate
Material grinding: concrete/terrazzo floor

PCD grinding shoes floor grinding pads for Lavina grinders - 2pcs 1/4 round PCD + 1 bar diamond segment


This type PCD grinding shoes floor grinding pads with 2pcs 1/4 round PCD & 1pc assisted bar shape diamond segment are used on Lavina grinders for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.


It is made from the highest quality poly crystalline diamonds.

The assisted diamond segment prevents damage to the floor by controlling the depth of the cuts from the PCDs.

It is ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.


Application: concrete, terrazzo floors.

Available in a left or right orientation.


Code No.

PCD Size/No.

Segment Specification

Base Specification

DGP-LAV-P04

1/4 round*2pcs

40x10x5mm*1pc

#30

Lavina quick lock plate


The above specifications & photos are for reference, other specifications may be available as per demand.
