Redi lock diamond grinding shoes concrete terrazoo floor pads for Husqvarna grinders - round segments
Segment type: metal bond, round column shape
Segment size: dia.20x12mm
Segment No.: 1-3pcs
Diamond Grit: #6-#200(coarse, medium, smooth)
Bond: soft, medium, hard
Body: steel base
Material grinding: concrete/terrazzo/stone floor
Production process: high-frequency welded

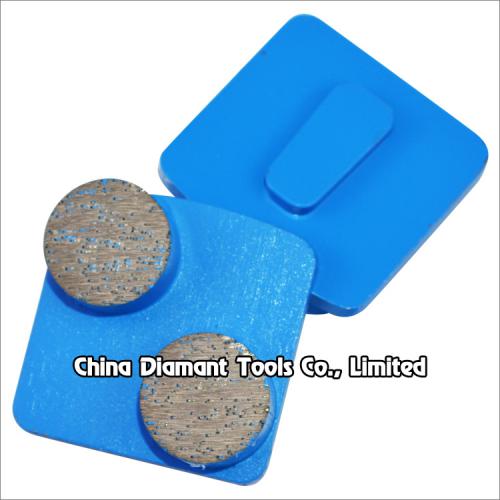

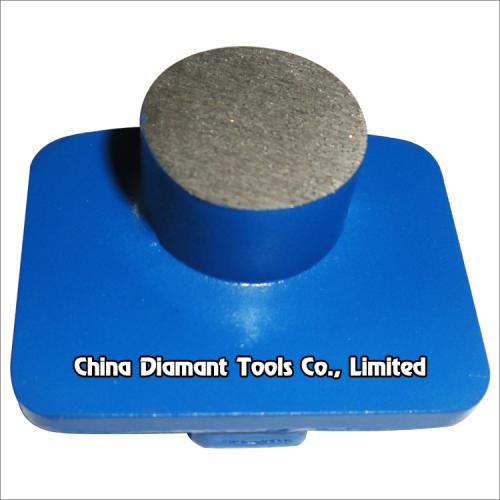

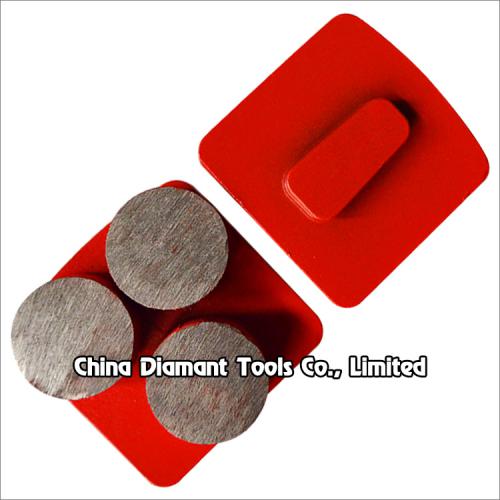

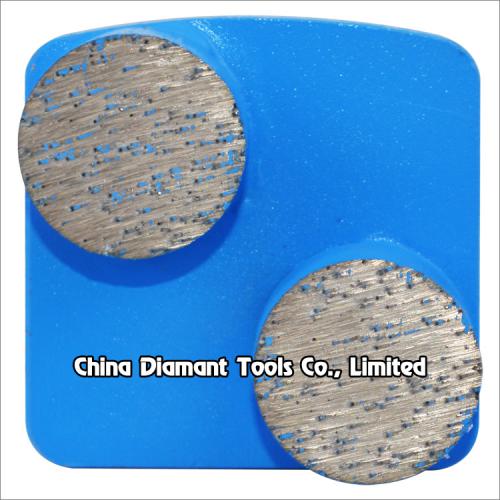

Diamond grinding shoes for Redi-lock holer of Husqvarna grinders - round column segments
Diamond grinding shoes with 1-3pcs metal bond round segments for redi-lock holder of Husqvarna grinders, they are high quality diamond grinding pads and often used for rough leveling and grinding of concrete terrazzo stone floor, such as underground parking lot, factory floor, etc., to remove the attachment on its surface.
Metal bond diamond segment has high strength, excellent wear resistance, and a low friction coefficient, it also has high grinding efficiency and low grinding force generates less heat in the grinding process.
Round segments grinding shoes are less aggressive and leave a more subtle scratch pattern, it is a suitable choice for fine grinding steps, which greatly reduce the scratches, this helps make for an easier transition into resin polishing pads.
Good diamond formulas provide high & stable performance. The precise redi-lock back makes it matched with Husqvarna grinders perfectly.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).
Segment bond: soft, medium, hard.
|
Code No. |
Segment No. |
Segment Size |
Grit No. |
Connection |
|
DGP-RL-01-1 |
1 |
Ø20x12mm |
#6 - #200 |
Redi-Lock holder |
|
DGP-RL-01-2 |
2 |
|||
| DGP-RL-01-3 | 3 |
The above specifications & photos are for reference, special segment size/bond may be available as per demand.
