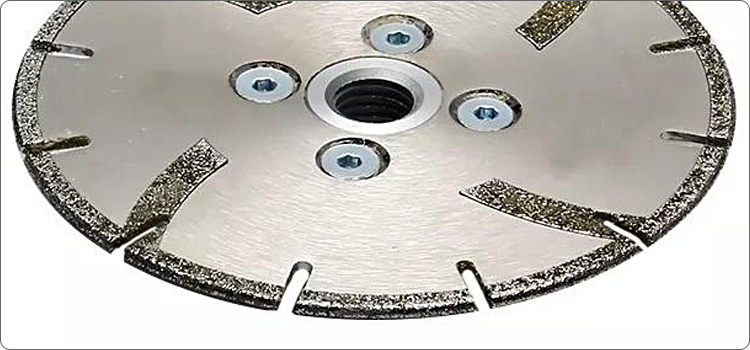

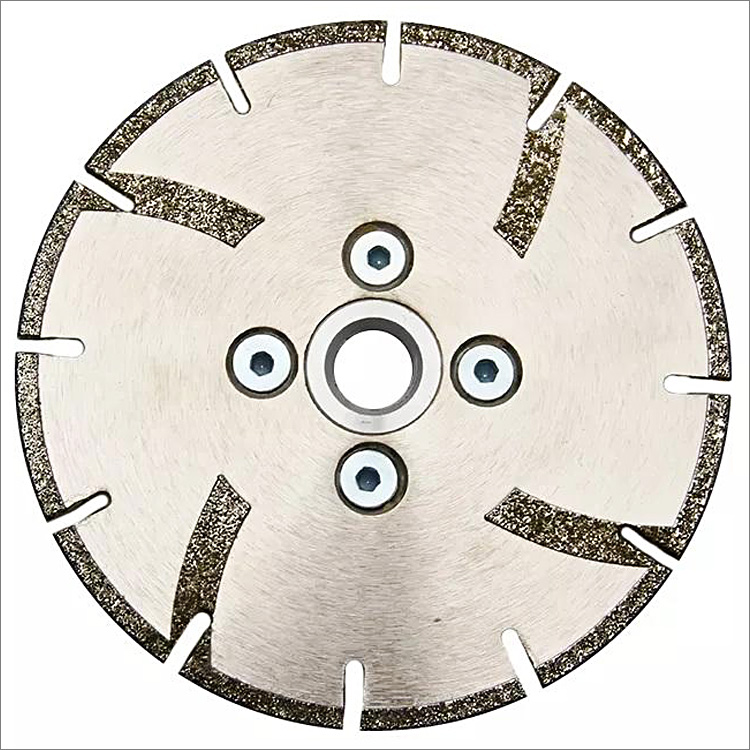

Reinforced electroplated diamond saw blade cutting disc for soft stone marble porcelain plastic steel

This reinforced type electroplated diamond saw blades with U slots are used on angle grinders or cutting machines for sharp and precise cutting a wide range of materials such as soft stone, marble, ceramic, porcelain tiles, glass, fiberglass, plastic pipes, steel, synthetic composites with high cutting efficiency, less chipping, low noise and flexible usage.

Electroplated technology keeps all diamond grain attached to the edge and double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide smooth & accurate cutting with high efficient working performance.

Wet or dry use, wet working may prolong the working life.

Other diamond grit from #50 to #150 is possible available.

Bore size: 20mm, 22.23mm, with flange M14, 5/8"-11.

Code No.	Diameter	Diamond grit
DSB-EL06-100	100mm(4")	#40
DSB-EL06-125	125mm(5")	#40
DSB-EL06-150	150mm(6")	#40
DSB-EL06-180	180mm(7")	#40
DSB-EL06-200	180mm(8")	#40
DSB-EL06-230	230mm(9")	#40

The above specifications & photos are for reference, other specifications may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
