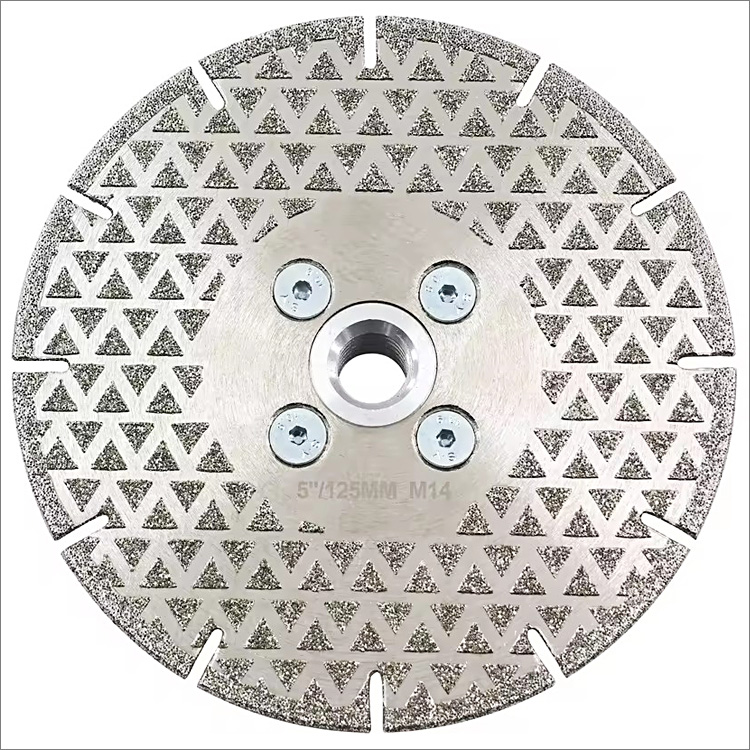

Double sides electroplated diamond cutting grinding disc for marble ceramic soft stone granite

This electroplated diamond blades with U slots are designed for wet or dry cutting grinding soft stone, marble, ceramic, glass, fiberglass, gemstone, etc. with high cutting efficiency, low noise and flexible usage.

Triangle spots coated on both sides for grinding purpose.

It is one type common tools for cutting and grinding non-metallic brittle materials. Electroplated technology keeps all diamond grain attached to the double sides of steel core, high diamond exposure rate provide high efficient working performance.

Wet working may prolong the working life, and not recommended for hard granite.

Diamond grit: other grits #50 to #150 may be available.

Bore size: 22.23mm, with flange M14, 5/8"-11.

Code No.	Diameter	Diamond grit
DSB-EL11-100	100mm(4")	#40
DSB-EL11-115	115mm(4-1/2")	#40
DSB-EL11-125	125mm(5")	#40
DSB-EL11-150	150mm(6")	#40
DSB-EL11-180	180mm(7")	#40
DSB-EL11-230	230mm(9")	#40

The above specifications & photos are for reference, other specifications may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
