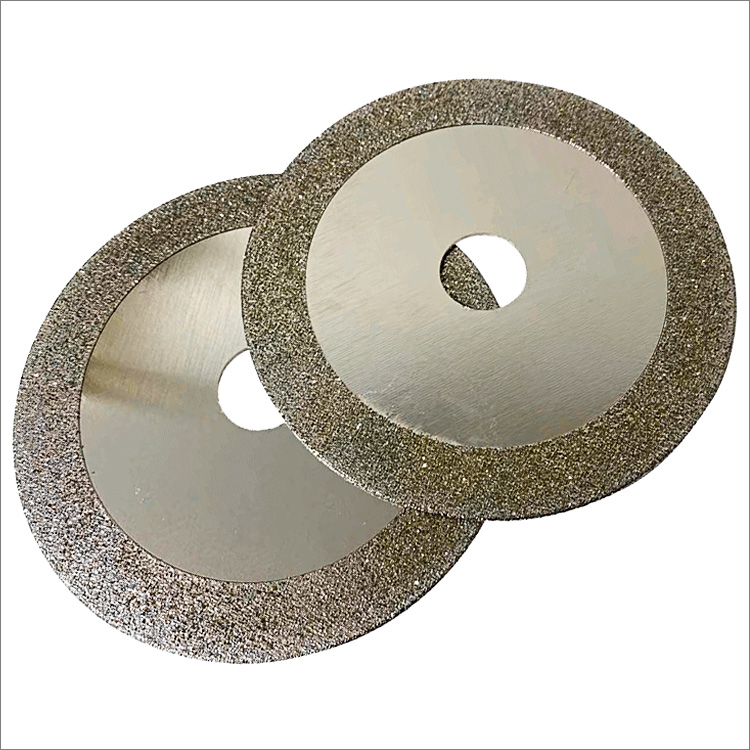

Electroplated diamond saw blade continuous rim cutting grinding disc for soft stone marble porcelain glass

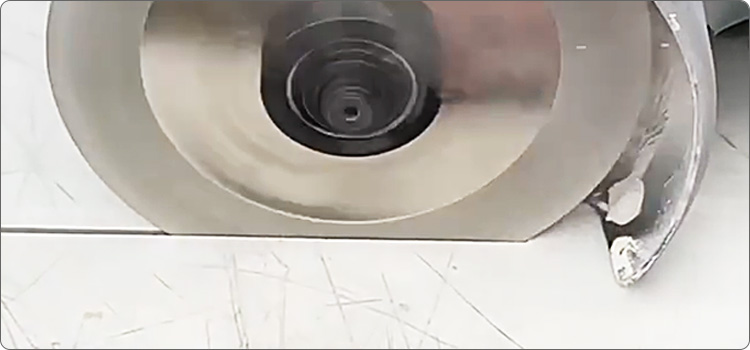

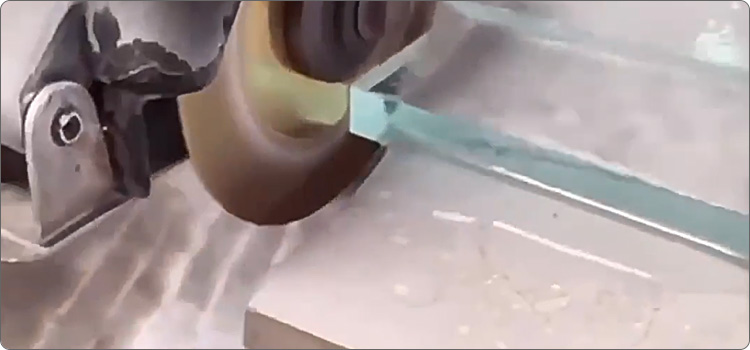

This continuous rim type 4 inches to 10 inches electroplated diamond saw blades are used on angle grinders or cutting machines for cutting grinding a wide range of materials such as soft stone, marble, ceramic, porcelain tiles, glass, fiberglass, plastic pipes, synthetic composites with high cutting efficiency, less chipping, low noise and flexible usage.

Electroplated technology keeps all diamond grain attached to the double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide smooth & accurate cutting with high efficient working performance.

Wet or dry use, wet working may prolong the working life.

Diamond working width: 10-15mm.

Bore size: 22.23mm, with flange M14, 5/8"-11.

Code No.	Diameter	Diamond grit
DSB-EL01-100	100mm(4")	#40-#120
DSB-EL01-125	125mm(5")	#40-#120
DSB-EL01-150	150mm(6")	#40-#120
DSB-EL01-180	180mm(7")	#40-#120
DSB-EL01-200	200mm(8")	#40-#120
DSB-EL01-230	230mm(9")	#40-#120
DSB-EL01-250	250mm(10")	#40-#120

The above specifications & photos are for reference, other specifications may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
