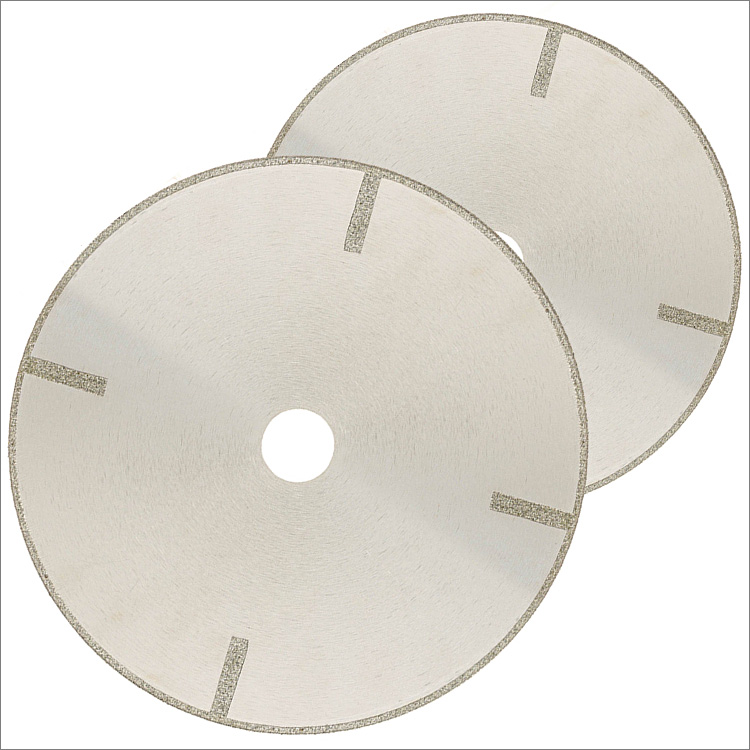

Reinforced electroplated
diamond saw blade cutting disc for soft
stone marble porcelain

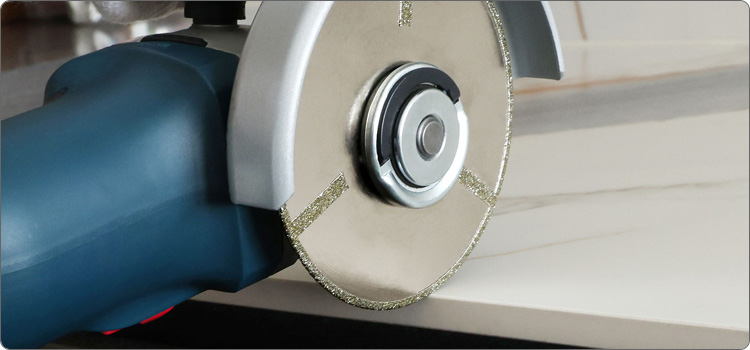

This continuous rim reinforced type electroplated diamond saw blades are used on angle
grinders or cutting machines for sharp and precise cutting a wide
range of materials such as soft
stone, marble, ceramic, porcelain tiles, glass, fiberglass, plastic
pipes, synthetic composites with high
cutting efficiency, less chipping, low noise and flexible usage.
Electroplated technology keeps all diamond grain attached to the
double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide
smooth & accurate cutting with high
efficient working performance.
Wet or dry use, wet working may prolong
the working life.
Diamond grit: #40, other diamond grit from #50 to #150 is possible available. Diamond working width:
5-10mm.
Bore size: 22.23mm, with flange M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
|
DSB-EL02-100 |
100mm(4") |
#40 |
|
DSB-EL02-125 |
125mm(5") |
#40 |
|
DSB-EL02-150 |
150mm(6") |
#40 |
|
DSB-EL02-180 |
180mm(7") |
#40 |
|
DSB-EL02-200 |
200mm(8") |
#40 |
|
DSB-EL02-230 |
230mm(9") |
#40 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
