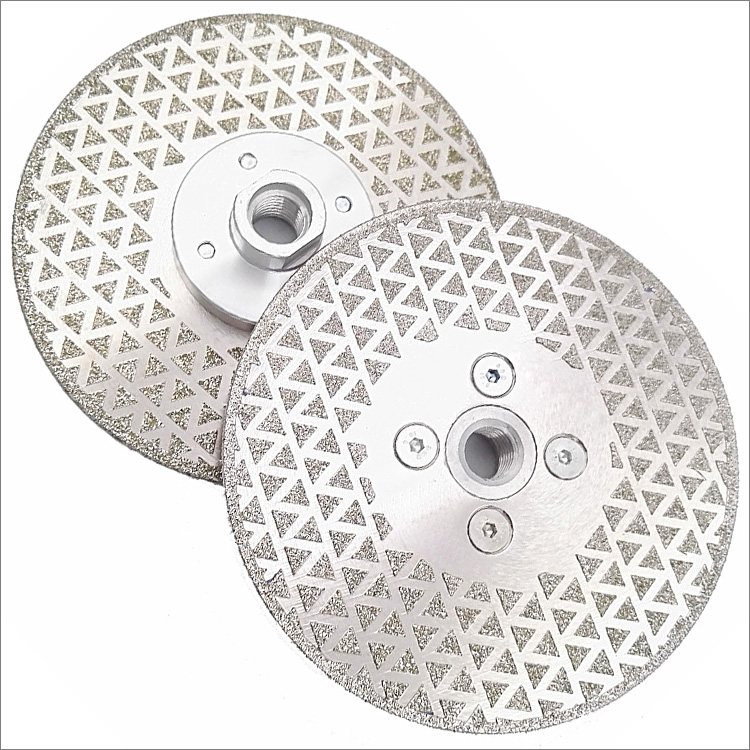

Electroplated
diamond saw blade grinding disc for cutting marble ceramic soft
stone granite

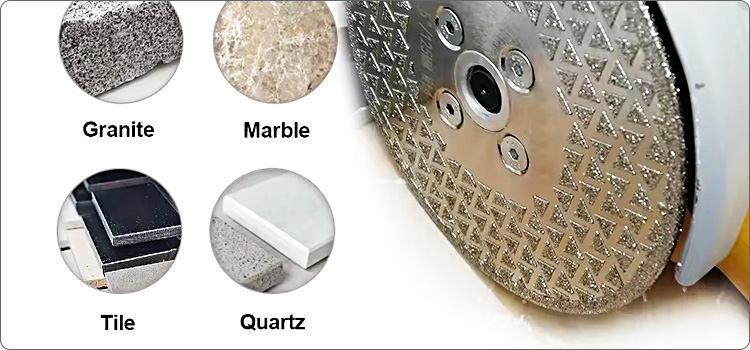

This continuous rim type electroplated diamond blades are designed for wet or dry cutting grinding soft
stone, marble, ceramic, glass, fiberglass, gemstone, etc. with high
cutting efficiency, low noise and flexible usage.
Triangle spots coated on
both sides for grinding purpose.
It is one type common
tools for cutting and grinding non-metallic brittle materials.
Electroplated technology keeps all diamond grain attached to the
double sides of steel core, high diamond exposure rate provide high
efficient working performance.
Wet working may prolong
the working life, and not recommended for hard granite.
Bore size: 22.23mm, with flange M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
|
DSB-EL14-030 |
30mm |
#40 |
|
DSB-EL14-040 |
40mm |
#40 |
|
DSB-EL14-050 |
50mm(2") |
#40 |
|
DSB-EL14-065 |
65mm |
#40 |
|
DSB-EL14-080 |
80mm |
#40 |
|
DSB-EL14-100 |
100mm(4") |
#40 |
|
DSB-EL14-115 |
115mm(4-1/2") |
#40 |
|
DSB-EL14-125 |
125mm(5") |
#40 |
|
DSB-EL14-150 |
150mm(6") |
#40 |
|
DSB-EL14-180 |
180mm(7") |
#40 |
|
DSB-EL14-200 |
200mm(8") |
#40 |
|
DSB-EL14-230 |
230mm(9") |
#40 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
