Conical electroplated diamond grinding heads engraving chamfering
drilling deburring grinding bits

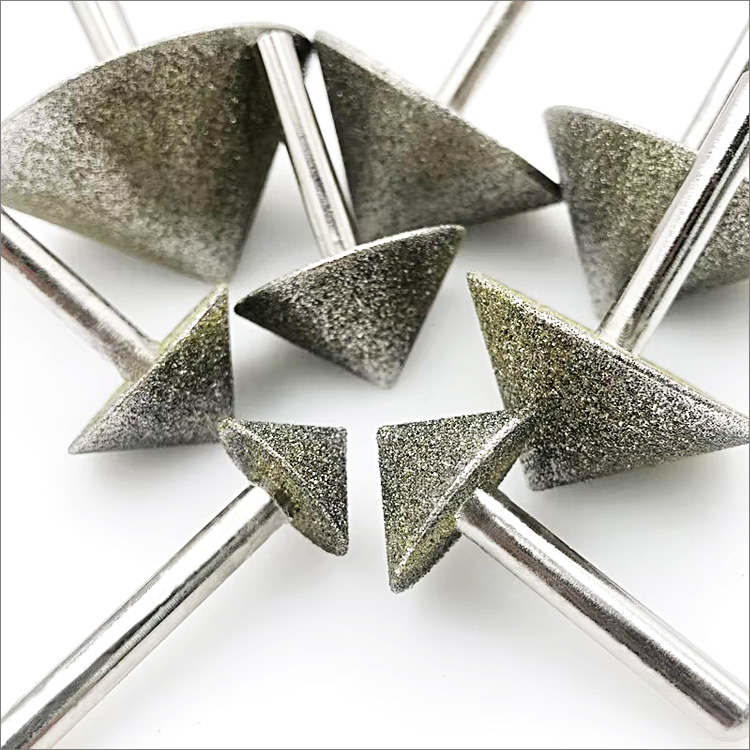

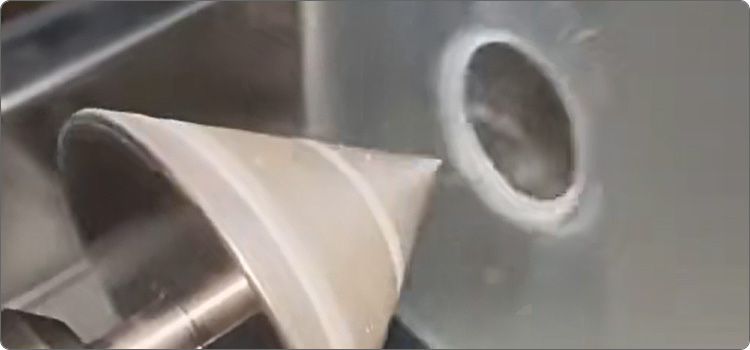

These umbrella shape conical electroplated diamond grinding bits are used for
grinding chamfering deburring drilling of various materials such as ceramic
tile, glass, soft stone, jewelry, jade, gemstone, alloys steel,
wood, etc.
These grinding heads can
be installed on electric mills, carving machines, hanging mills,
hand electric drills, pneumatic air mills, and other electrical
tools can hold 3/6/10mm handles can be used.
Please use water for coolant.

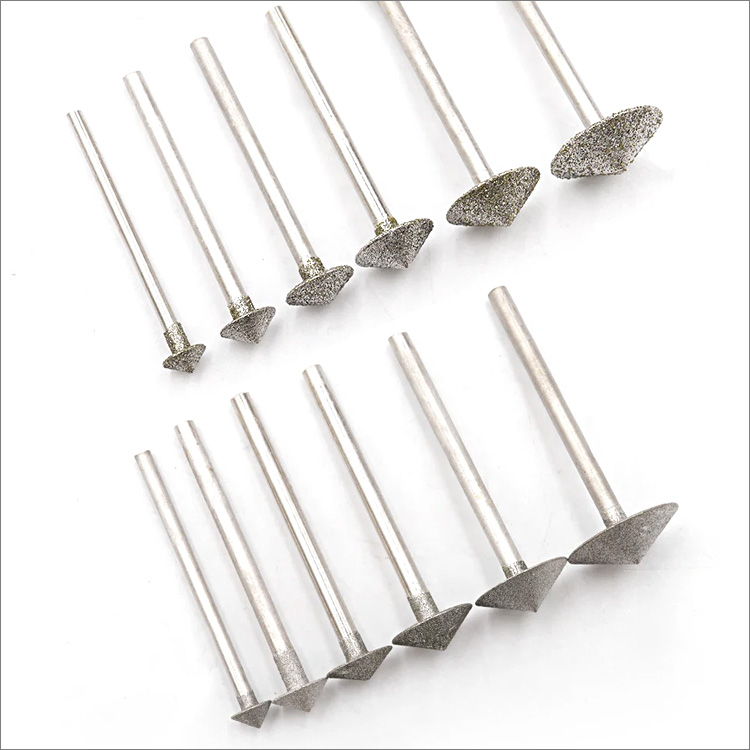

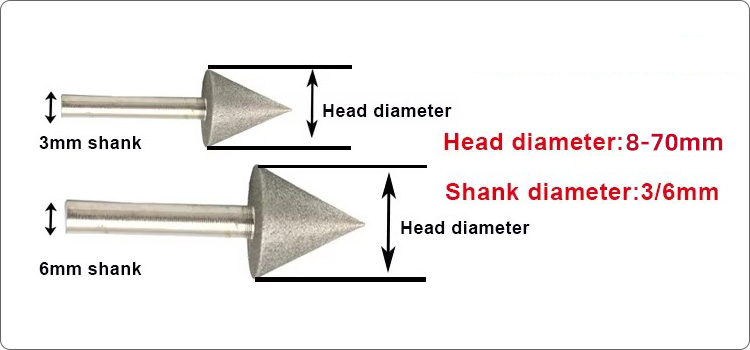

Diameter: 8mm-70mm.
Shank diameter: 3mm, 6mm, 10mm.
Regular total length: 60mm.

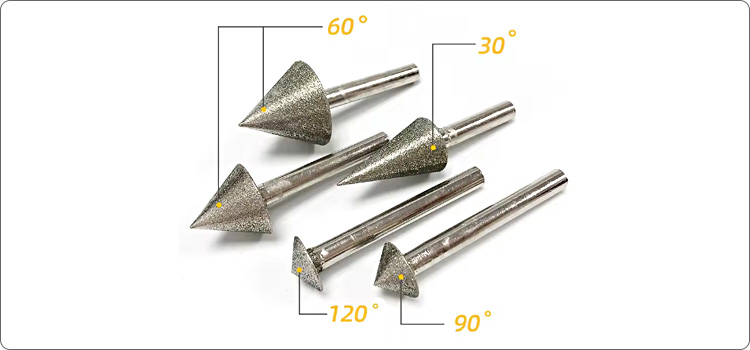

Angles: degree 30/45/60/90/120.
Diamond grit: #80, #120, #150, #180, #240, #320, other grit is possible available.
|
Code No. |
Diameter |
Diamond Grit |
|
DGH-EL12-08 |
8mm |
#80 - #320 |
|
DGH-EL12-10 |
10mm |
#80 - #320 |
|
DGH-EL12-12 |
12mm |
#80 - #320 |
|
DGH-EL12-14 |
14mm |
#80 - #320 |
|
DGH-EL12-16 |
16mm |
#80 - #320 |
|
DGH-EL12-20 |
20mm |
#80 - #320 |
|
DGH-EL12-25 |
25mm |
#80 - #320 |
|
DGH-EL12-30 |
30mm |
#80 - #320 |
|
DGH-EL12-35 |
35mm |
#80 - #320 |
|
DGH-EL12-40 |
40mm |
#80 - #320 |
|
DGH-EL12-45 |
45mm |
#80 - #320 |
|
DGH-EL12-50 |
50mm |
#80 - #320 |
|
DGH-EL12-55 |
55mm |
#80 - #320 |
|
DGH-EL12-60 |
60mm |
#80 - #320 |
|
DGH-EL12-65 |
65mm |
#80 - #320 |
|
DGH-EL12-70 |
70mm |
#80 - #320 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
