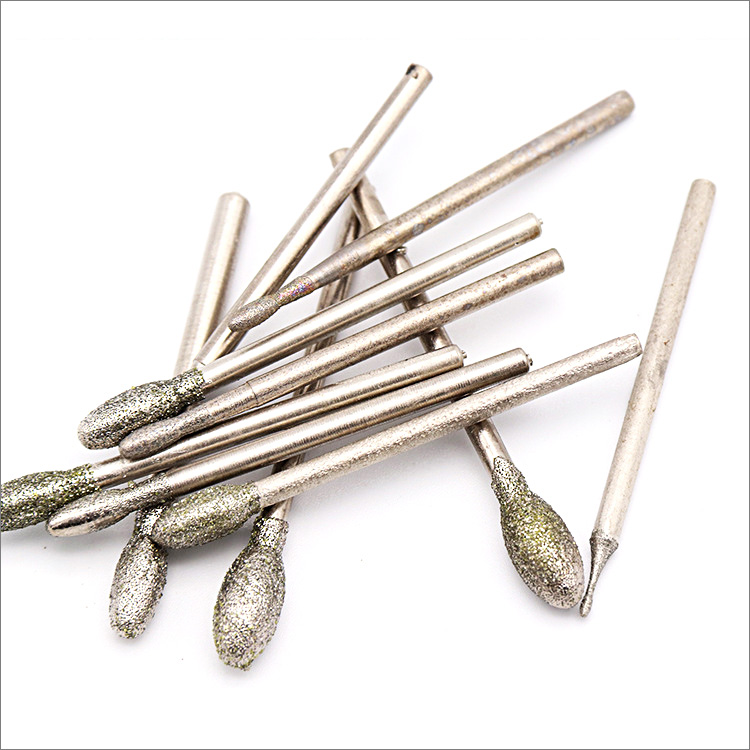

0.5mm to 12mm oval electroplated diamond grinding heads carving bits
diamond mounted points rotary tool

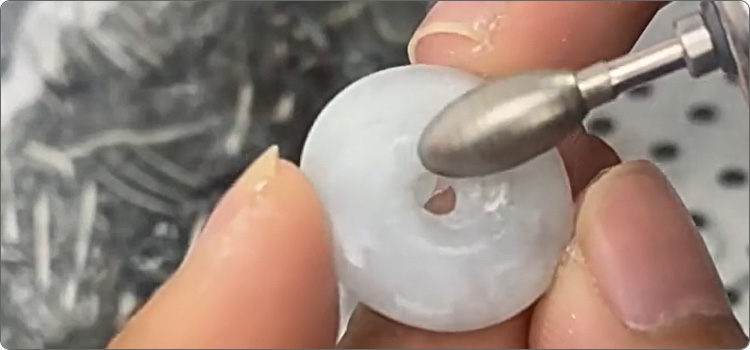

These oval electroplated diamond grinding heads are usually used for
crafts, hobbies, home repair, jewelry, lapidary use, such as carving
dressing grinding polishing ceramic, glass, precious stone, jade,
crystal, agate, gemstone, bone, stainless steel, alloy steel and
many other abrasive or hard materials.
These grinding bits can
be installed on the electric grinder, hanging mill and hand electric
drill, but never use drills while machine is in hammer action.
Highly recommended for crafts, hobbies, home repair, jewelry,
lapidary use, modeling
Please use water for coolant.

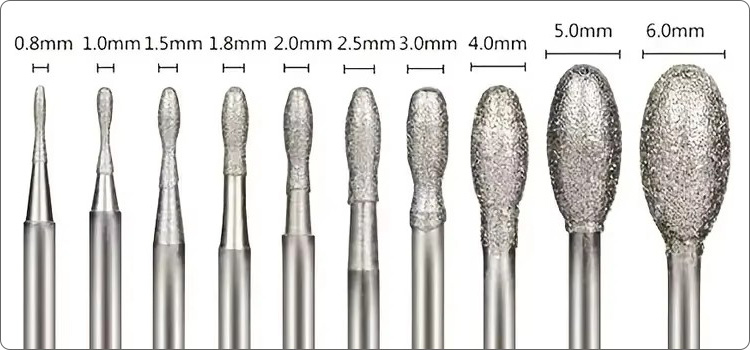

Diameter: 0.8mm-12mm.
Shank diameter: 2.35mm, 3mm.
Regular total length: around 45mm.
Diamond grit: regular grit #120, other grit(#80, #120, #150,
#180, #240, #320) is possible available.
|
Code No. |
Diameter |
Diamond Grit |
|
DGH-EL11-008 |
0.8mm |
#120 |
|
DGH-EL11-010 |
1.0mm |
#120 |
|
DGH-EL11-015 |
1.5mm |
#120 |
|
DGH-EL11-018 |
1.8mm |
#120 |
|
DGH-EL11-020 |
2.0mm |
#120 |
|
DGH-EL11-025 |
2.5mm |
#120 |
|
DGH-EL11-030 |
3.0mm |
#120 |
|
DGH-EL11-040 |
4.0mm |
#120 |
|
DGH-EL11-060 |
6.0mm |
#120 |
|
DGH-EL11-080 |
8.0mm |
#120 |
|
DGH-EL11-100 |
10.0mm |
#120 |
|
DGH-EL11-120 |
12.0mm |
#120 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
