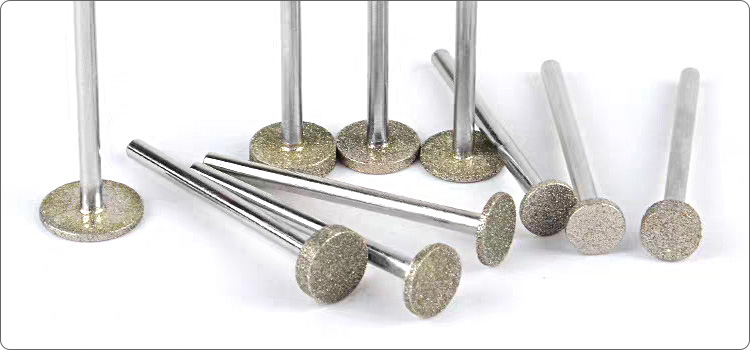

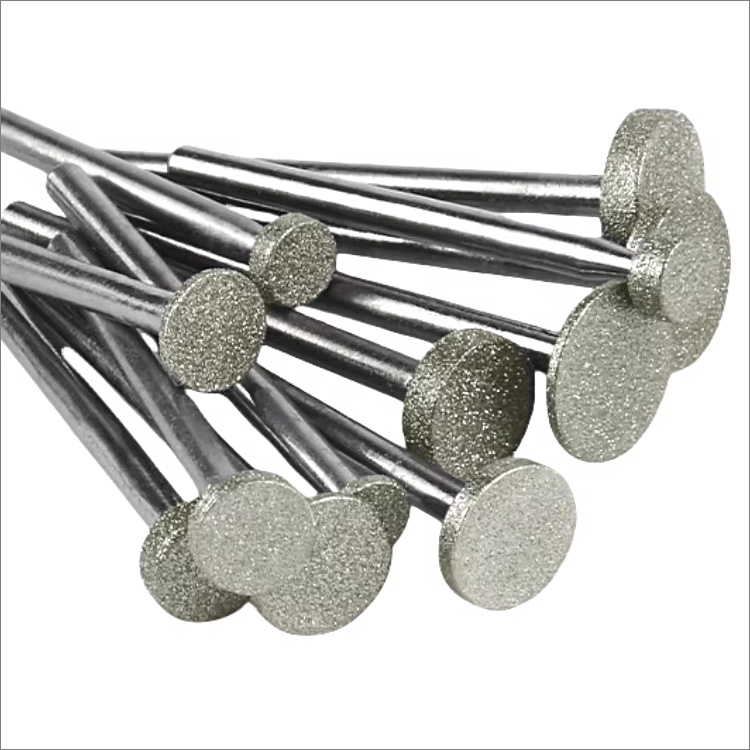

T-shaped electroplated diamond grinding heads lapidary
carving bits diamond mounted points rotary tool
These T-shaped electroplated diamond grinding heads are used for
carving grinding polishing stone, concrete, ceramic, glass, jewelry, jade,
gemstone, bone, alloy and many other abrasive or hard materials,
they are suitable for grinding needs at different angles and depths.
These grinding bits can
be installed on the electric grinder, hanging mill and hand electric
drill, but never use drills while machine is in hammer action.
Please use water for coolant.
Diameter: 6mm-25mm.
Diamond coated thickness: 1-3mm.
Shank diameter: 2.35mm, 3mm.
Regular total length: 40-60mm.
Diamond grit: #60, #80, #120, #150, #180, #240, #320, other grit is possible available.
|
Code No. |
Diameter |
Diamond Grit |
|
DGH-EL07-06 |
6mm |
#60 - #320 |
|
DGH-EL07-08 |
8mm |
#60 - #320 |
|
DGH-EL07-10 |
10mm |
#60 - #320 |
|
DGH-EL07-12 |
12mm |
#60 - #320 |
|
DGH-EL07-14 |
14mm |
#60 - #320 |
|
DGH-EL07-16 |
16mm |
#60 - #320 |
|
DGH-EL07-18 |
18mm |
#60 - #320 |
|
DGH-EL07-20 |
20mm |
#60 - #320 |
|
DGH-EL07-25 |
25mm |
#60 - #320 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
