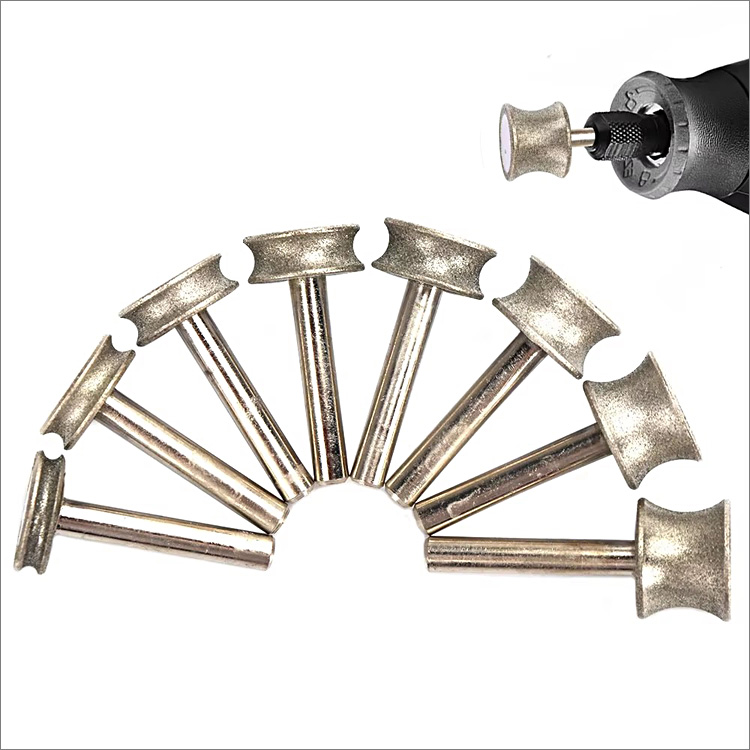

20mm concave diamond grinding heads sharpening wheels thickness 2-12mm for
stone glass
jade ceramic
These concave electroplated diamond grinding wheels are used for
sculpturing, dressing, precision grinding of various abrasive
materials such as ceramics, glass, precious stones, alloys, as well
as internal grinding of cemented carbides, meeting the processing
needs in different scenarios.
They are made of
high-quality emery material, featuring high hardness and strong
durability, and not easy to wear during use and can maintain good
performance for a long time.

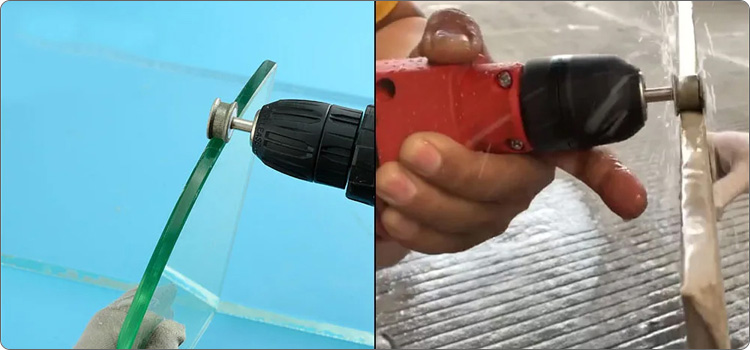

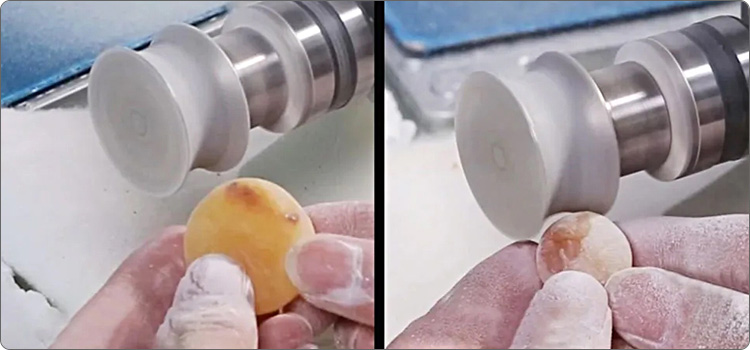

During the sculpturing operation, it is necessary to use cold water
to cool the workpiece and the grinding head, and the cooling water
must not be interrupted for a moment during the entire polishing
process to ensure the operation effect and equipment life.

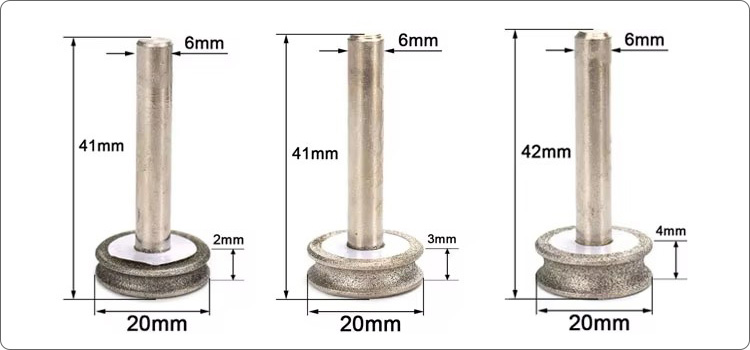

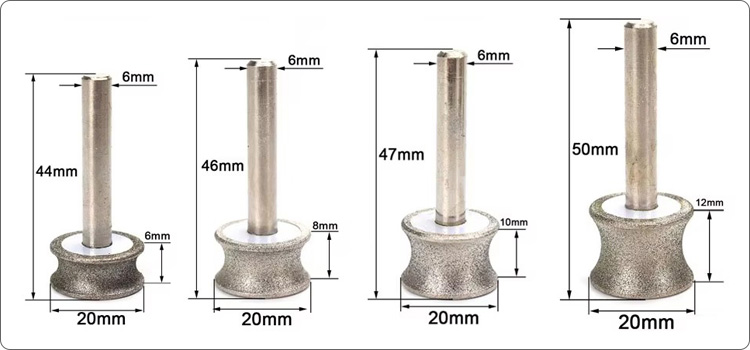

Diameter: 20mm.
Shank diameter: 6mm.
Diamond grit: #150, #400, other grit is possible available.
|
Code No. |
Thickness |
Diamond Grit |
|
DGH-EL04-02 |
2mm |
#150/#400 |
|
DGH-EL04-03 |
3mm |
#150/#400 |
|
DGH-EL04-04 |
4mm |
#150/#400 |
|
DGH-EL04-05 |
5mm |
#150/#400 |
|
DGH-EL04-06 |
6mm |
#150/#400 |
|
DGH-EL04-08 |
8mm |
#150/#400 |
|
DGH-EL04-10 |
10mm |
#150/#400 |
|
DGH-EL04-12 |
12mm |
#150/#400 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
