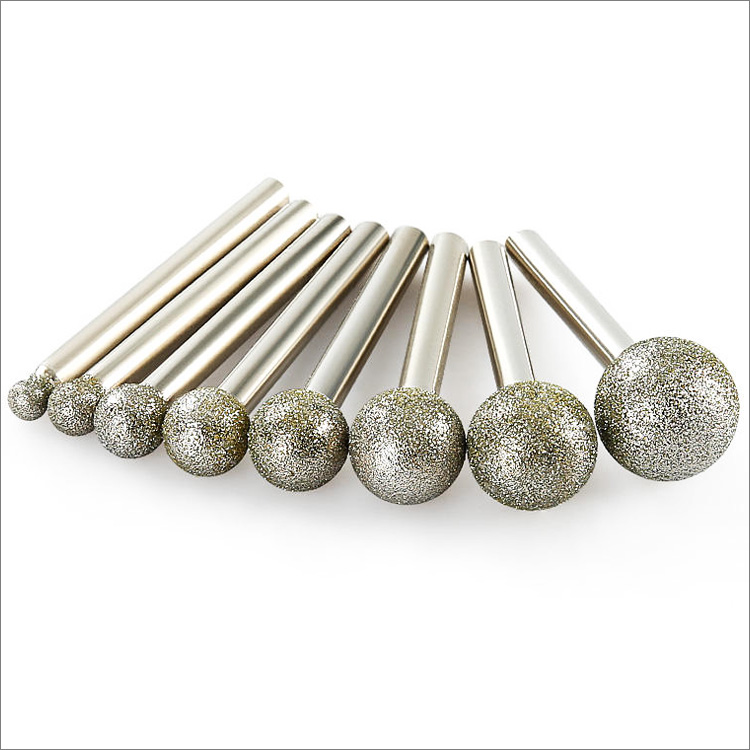

Spherical electroplated diamond grinding heads stone
carving bits rotary tool diamond mounted points
These ball shape electroplated diamond grinding heads are
high-performance tools designed for jade carvings, mold processing,
dental shaping, metal surface polishing, and precision grinding
polishing stone, concrete, ceramic, glass, jewelry, gemstone, bone,
aluminum, alloy
steel, stainless steel, and many other abrasive or hard materials.

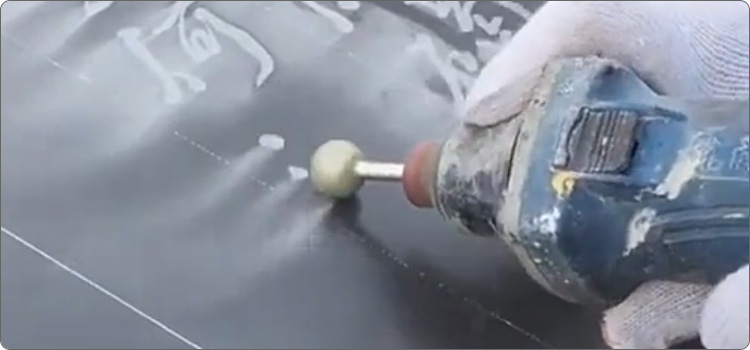

These grinding bits can
be installed on the crane grinders, electric grinder, engraving
machines, hanging mill and hand electric
drill, but never use drills while machine is in hammer action.
Please use water for coolant.

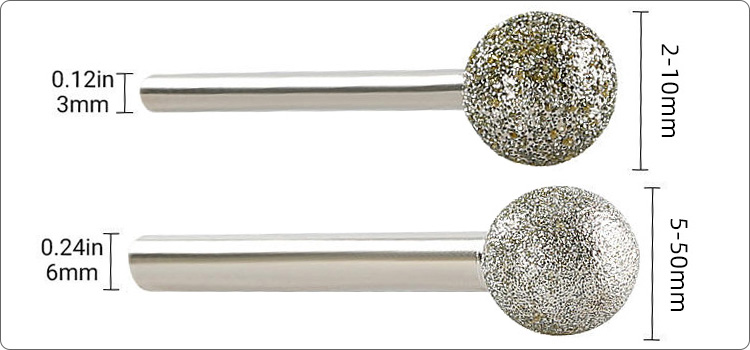

Ball diameter: 4mm-50mm.
Shank diameter: 2.35mm, 3mm or 6mm.
Regular total length: 40-60mm.
Diamond grit: #60, #80, #120, #150, #180, #240, #320, other grit is possible available.
|
Code No. |
Diameter |
Diamond Grit |
|
DGH-EL02-02 |
2mm |
#60 - #320 |
|
DGH-EL02-03 |
3mm |
#60 - #320 |
|
DGH-EL02-04 |
4mm |
#60 - #320 |
|
DGH-EL02-05 |
5mm |
#60 - #320 |
|
DGH-EL02-06 |
6mm |
#60 - #320 |
|
DGH-EL02-08 |
8mm |
#60 - #320 |
|
DGH-EL02-10 |
10mm |
#60 - #320 |
|
DGH-EL02-12 |
12mm |
#60 - #320 |
|
DGH-EL02-14 |
14mm |
#60 - #320 |
|
DGH-EL02-16 |
16mm |
#60 - #320 |
|
DGH-EL02-18 |
18mm |
#60 - #320 |
|
DGH-EL02-20 |
20mm |
#60 - #320 |
|
DGH-EL02-25 |
25mm |
#60 - #320 |
|
DGH-EL02-30 |
30mm |
#60 - #320 |
|
DGH-EL02-35 |
35mm |
#60 - #320 |
|
DGH-EL02-40 |
40mm |
#60 - #320 |
|
DGH-EL02-45 |
45mm |
#60 - #320 |
|
DGH-EL02-50 |
50mm |
#60 - #320 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
