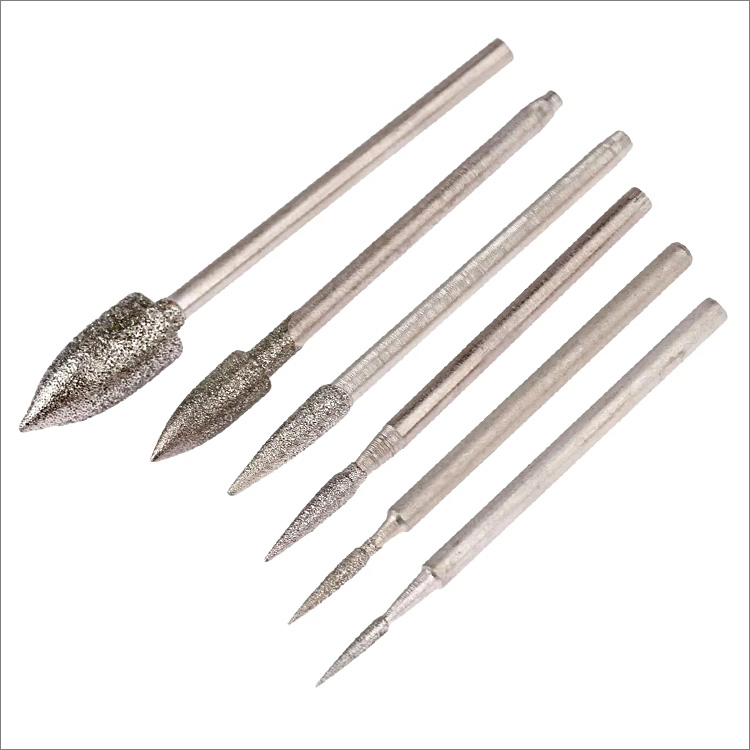

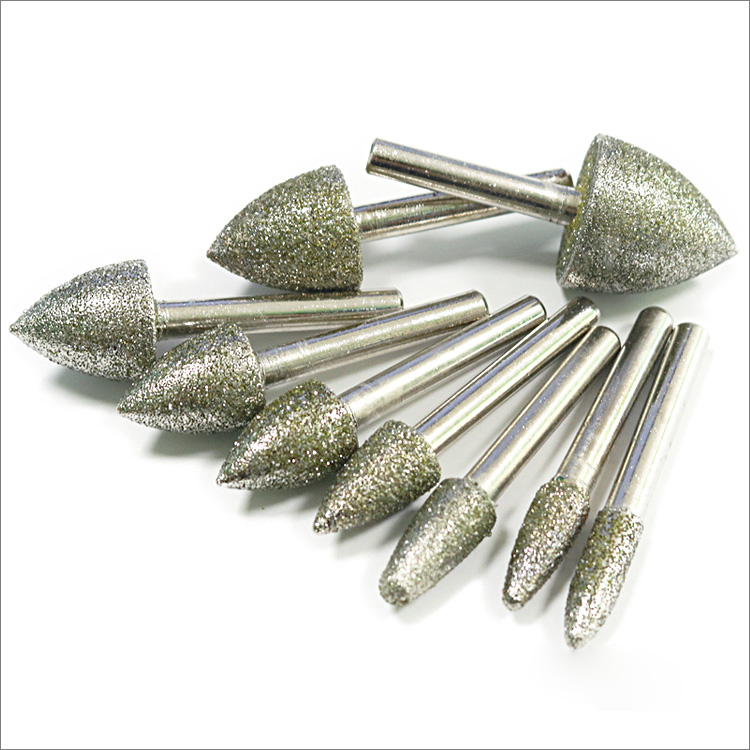

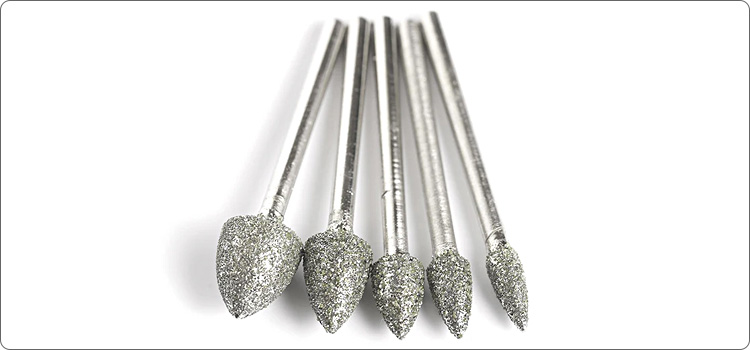

Bullet head shape electroplated diamond grinding heads carving bits
diamond mounted points rotary tool

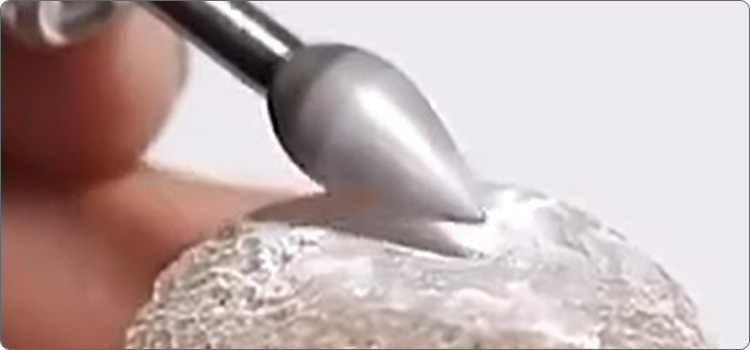

These bullet head shape electroplated diamond grinding heads are used for
metal peeling, mould shaping, carving dressing grinding ceramic, glass, precious stone, jewelry, jade,
crystal, agate, gemstone,
bone, stainless steel, alloy steel and many other abrasive or hard materials.
These grinding bits can
be installed on the electric grinder, hanging mill and hand electric
drill, but never use drills while machine is in hammer action.
Please use water for coolant.
Diameter: 1mm-25mm.
Shank diameter: 2.35mm, 3mm, 6mm.
Regular total length: 40-60mm.
Diamond grit: #60, #80, #120, #150, #180, #240, #320, other grit is possible available.
|
Code No. |
Diameter |
Diamond Grit |
|
DGH-EL09-01 |
1mm |
#60 - #320 |
|
DGH-EL09-015 |
1.5mm |
#60 - #320 |
|
DGH-EL09-02 |
2mm |
#60 - #320 |
|
DGH-EL09-03 |
3mm |
#60 - #320 |
|
DGH-EL09-04 |
4mm |
#60 - #320 |
|
DGH-EL09-06 |
6mm |
#60 - #320 |
|
DGH-EL09-08 |
8mm |
#60 - #320 |
|
DGH-EL09-10 |
10mm |
#60 - #320 |
|
DGH-EL09-12 |
12mm |
#60 - #320 |
|
DGH-EL09-14 |
14mm |
#60 - #320 |
|
DGH-EL09-16 |
16mm |
#60 - #320 |
|
DGH-EL09-20 |
20mm |
#60 - #320 |
|
DGH-EL09-25 |
25mm |
#60 - #320 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
