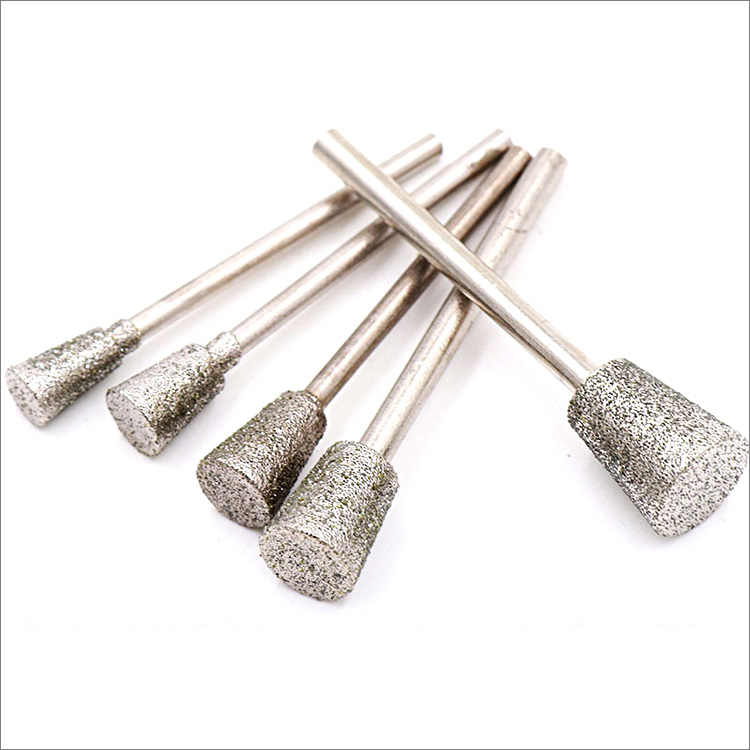

Truncated cone shape electroplated diamond grinding heads carving bits
diamond mounted points rotary tool
These truncated cone shape electroplated diamond grinding heads are used for
sculpturing dressing precision grinding and internal grinding
carbide in ceramic, glass, precious stone, jewelry, jade, gemstone,
bone, alloy and many other abrasive or hard materials.

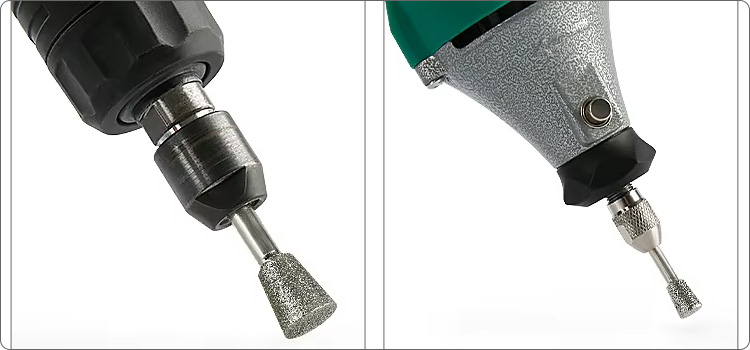

These grinding bits can
be installed on the electric grinder, hanging mill and hand electric
drill, but never use drills while machine is in hammer action.
Please use water for coolant.

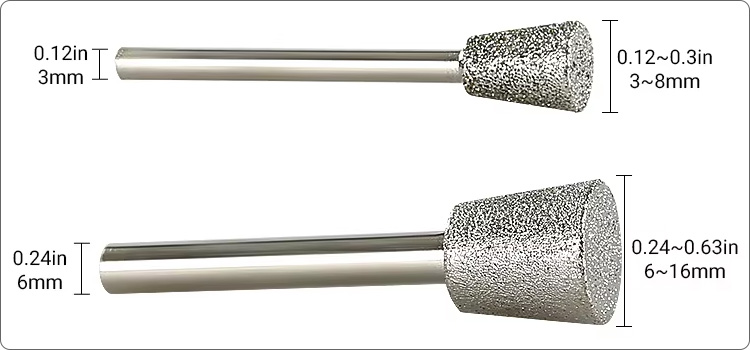

Diameter: 3mm-16mm.
Shank diameter: 2.35mm, 3mm or 6mm.
Regular total length: 40-60mm.
Diamond grit: #80, #120, #150, #180, #240, #320, other grit is possible available.
|
Code No. |
Diameter |
Diamond Grit |
|
DGH-EL10-03 |
3mm |
#80 - #320 |
|
DGH-EL10-04 |
4mm |
#80 - #320 |
|
DGH-EL10-05 |
5mm |
#80 - #320 |
|
DGH-EL10-06 |
6mm |
#80 - #320 |
|
DGH-EL10-08 |
8mm |
#80 - #320 |
|
DGH-EL10-10 |
10mm |
#80 - #320 |
|
DGH-EL10-12 |
12mm |
#80 - #320 |
|
DGH-EL10-14 |
14mm |
#80 - #320 |
|
DGH-EL10-16 |
16mm |
#80 - #320 |
The above specifications & photos are for reference, other specifications
may be available as per demand.
