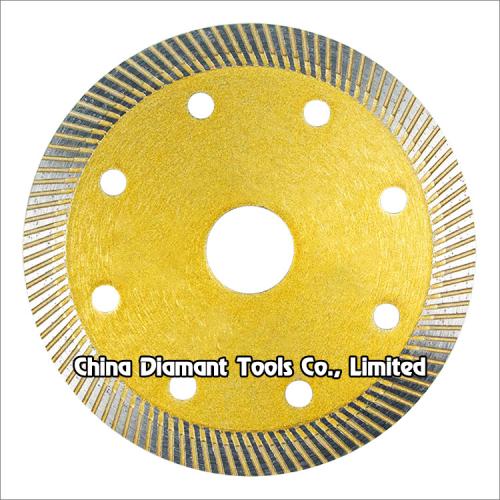

Diamond saw blades for ceramic porcelain cutting - narrow turbo rim
Diameter: 105-230mm
Bore: 20/22.23/25.4mm
Segment height: 8mm/10mm
Segment type: continuous narrow turbo rim
Production process: hot-press sintered
Diamond saw blades for ceramic porcelain cutting - narrow turbo rim
Diamond saw blades with narrow turbo rim and thin segments for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.
Wet or dry Use.
The blades are used with angle grinders, brick saws, circular saws, concrete saws, portable saws, radial arm saws and tile saws.
Hot-press sintered.
Segment height: 8mm, 10mm
Bore size: 20mm, 22.23mm, 25.4mm or as per demand.
|
Code No. |
Diameter |
Segment Thickness |
Segment Height |
|
CCSB-04-105 |
105mm(4") |
1.2/1.4mm |
8/10mm |
|
CCSB-04-110 |
110mm(4.5") |
1.2/1.4mm |
8/10mm |
|
CCSB-04-115 |
115mm(4-1/2") |
1.2/1.4mm |
8/10mm |
|
CCSB-04-125 |
125mm(5") |
1.2/1.4mm |
8/10mm |
|
CCSB-04-150 |
150mm(6") |
1.8mm |
10mm |
|
CCSB-04-180 |
180mm(7") |
1.8mm |
10mm |
|
CCSB-04-200 |
200mm(8") |
1.8mm |
10mm |
|
CCSB-04-230 |
230mm(9") |
2.0mm |
10mm |
The above specifications & photos are for reference, other specification may be available as per demand.
