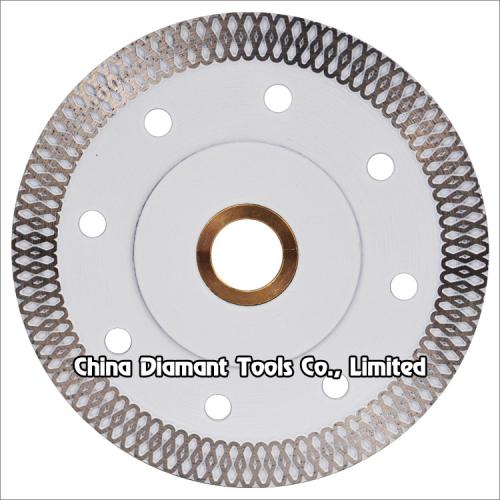

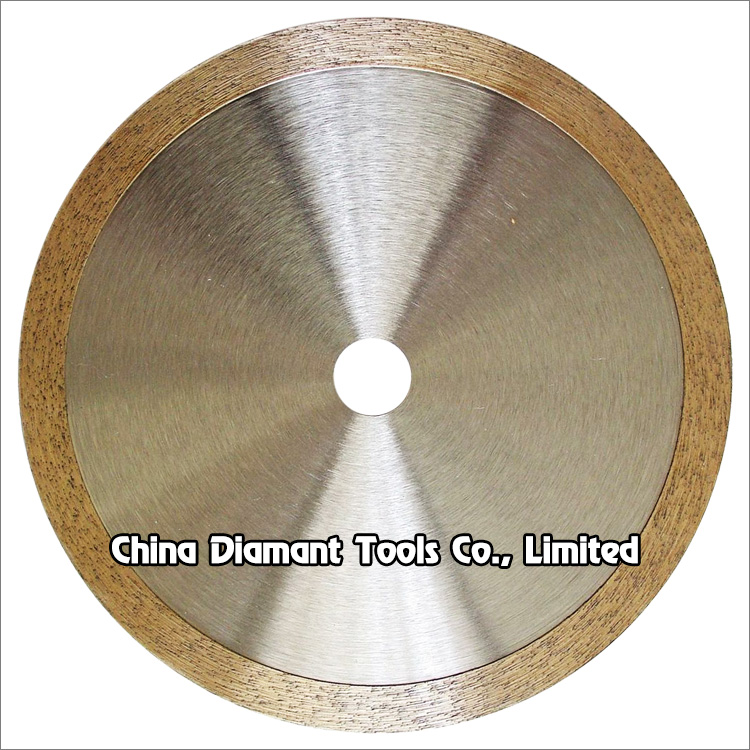

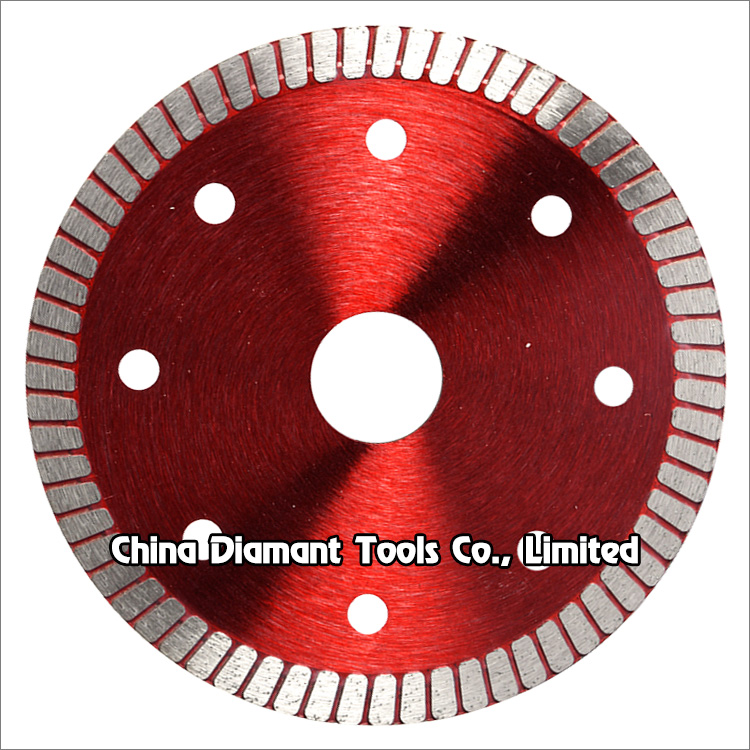

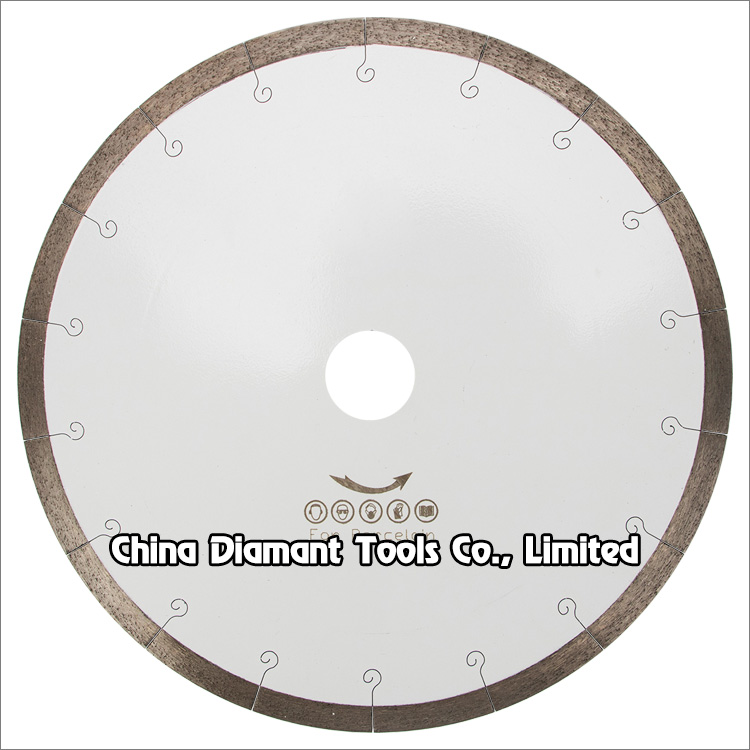

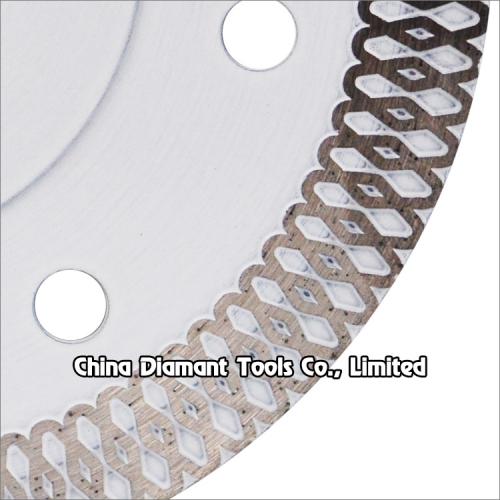

Diamond saw blades for ceramic porcelain cutting - continuous & fish scale rim
Diameter: 105-230mm
Bore: 20/22.23/25.4mm
Segment height: 10mm
Segment type: continuous fish scale rim
Production process: hot-press sintered
Diamond saw blades for ceramic porcelain cutting - continuous & fish scale rim
Diamond saw blades with continuous & fish scale rim segments for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.
The blades are used with angle grinders, brick saws, circular saws, concrete saws, portable saws, radial arm saws and tile saws.
Steel core type: thicker of central part.
Hot-press sintered.
Wet or dry use.
Segment height: 10mm.
Bore size: 20mm, 22.23mm, 25.4mm or as per demand.
|
Code No. |
Diameter |
Segment size (W*H)mm |
|
CCSB-05-105 |
105mm(4") |
1.4*10mm |
|
CCSB-05-110 |
110mm(4.5") |
1.4*10mm |
|
CCSB-05-115 |
115mm(4-1/2") |
1.4*10mm |
|
CCSB-05-125 |
125mm(5") |
1.4*10mm |
|
CCSB-05-150 |
150mm(6") |
1.8*10mm |
|
CCSB-05-180 |
180mm(7") |
1.8*10mm |
|
CCSB-05-200 |
200mm(8") |
1.8*10mm |
|
CCSB-05-230 |
230mm(9") |
2.0*10mm |
The above specifications & photos are for reference, other specification may be available as per demand.
