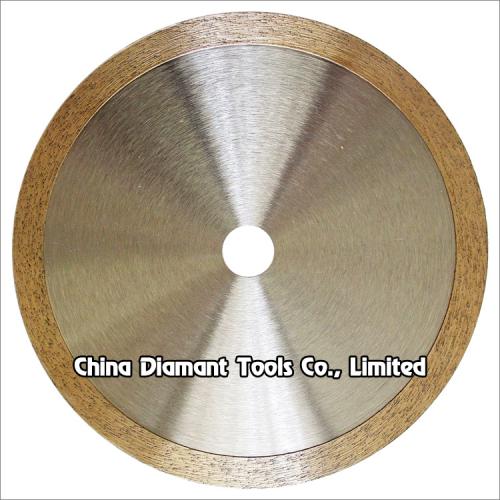

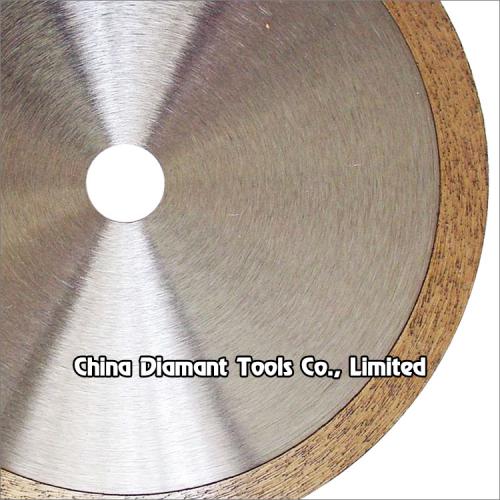

Diamond saw blades for ceramic porcelain tile cutting - continuous rim

item No : CCSB-01
Diameter: 105-300mm
Bore: 20/22.23mm
Segment height: 8-10mm
Segment type: continuous rim
Production process: hot-press sintered
Inquiry Now
Detailed Description

Diamond saw blades for ceramic porcelain cutting - continuous rim


Continuous rim diamond saw blades for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.


Steel Core Type: Continuous rim

Segment height: 8mm, 10mm.

Hot-press sintered.

Single blade or multi-blade cutting.

Wet or dry use.

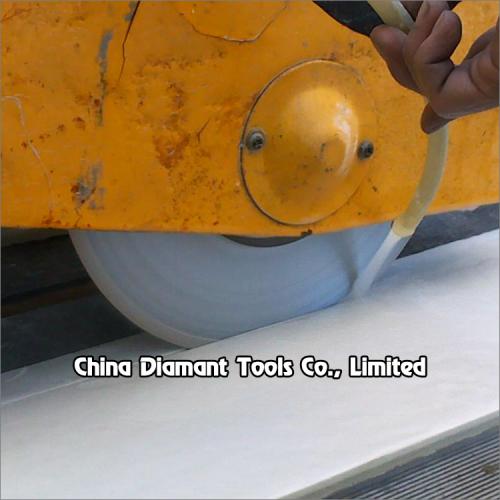

The blades are used with angle grinders, brick saws, circular saws, concrete saws, portable saws, radial arm saws and tile saws.


Code No.

Diameter

Bore size

Segment size

(W*H)mm

CCSB-01-105

105mm(4")

20/22.23/25.4mm

1.4*8/10mm

CCSB-01-115

115mm(4-1/2")

20/22.23/25.4mm

1.4*8/10mm

CCSB-01-125

125mm(5")

20/22.23/25.4mm

1.4*8/10mm

CCSB-01-150

150mm(6")

20/22.23/25.4mm

1.8*8/10mm

CCSB-01-180

180mm(7")

20/22.23/25.4mm

1.8*8/10mm

CCSB-01-200

200mm(8")

20/22.23/25.4mm

1.8*10mm

CCSB-01-230

230mm(9")

20/22.23/25.4mm

2.0*10mm

CCSB-01-250

250mm(10")

25.4/30/50/60mm

2.0*10mm

CCSB-01-300

300mm(12")

25.4/30/50/60mm

2.2*10mm


The above specifications & photos are for reference, other specification may be available as per demand.
