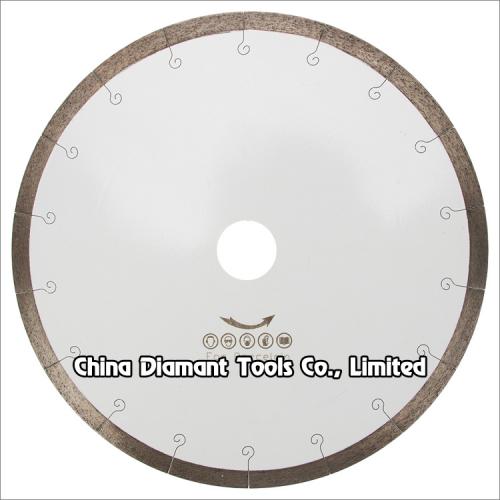

Diamond saw blades for ceramic porcelain cutting - continuous rim with J(fishhook) slot
Diameter: 105-350mm
Bore: 20/22.23/25.4mm
Segment height: 10mm
Segment type: continuous rim with J slot
Production process: hot-press sintered
Diamond saw blades for ceramic porcelain cutting - continuous rim with J(fishhook) slot
Diamond saw blades continuous rim with laser cut fishhook slot for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.
Single blade or multi-blade cutting.
Wet or dry use.
Compared to normal continuous rim blade, J slot is better for speed cutting and coolant.
The blades are used with angle grinders, brick saws, circular saws, portable saws, radial arm saws, tile saws, manual edge cutting machines, bridge cutting machines.

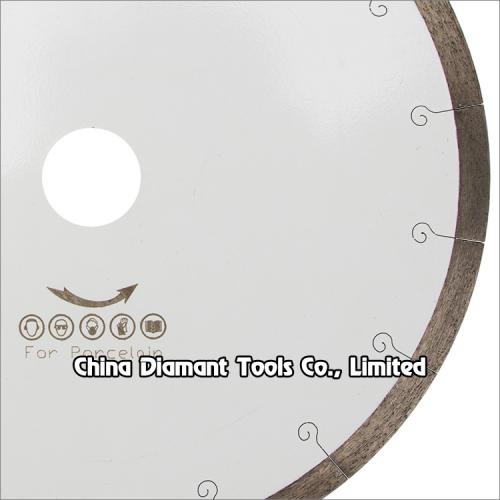

Steel core type: continuous rim with laser cut fishhook slot.
Segment height: 10mm.
Bore size: 20mm, 22.23mm, 25.4mm, 30mm, 50mm, 60mm or as per demand.
Hot sintered or silver welded(300mm-350mm).
|
Code No. |
Diameter |
Segment size (W*H)mm |
|
CCSB-02-105 |
105mm(4") |
1.4*10mm |
|
CCSB-02-115 |
115mm(4-1/2") |
1.4*10mm |
|
CCSB-02-125 |
125mm(5") |
1.4*10mm |
|
CCSB-02-150 |
150mm(6") |
1.8*10mm |
|
CCSB-02-180 |
180mm(7") |
1.8*10mm |
|
CCSB-02-200 |
200mm(8") |
1.8*10mm |
|
CCSB-02-230 |
230mm(9") |
2.0*10mm |
|
CCSB-02-250 |
250mm(10") |
2.0/2.8*10mm |
|
CCSB-02-300 |
300mm(12") |
2.2/3.0*10mm |
| CCSB-02-350 | 350mm(14") | 2.2/3.0*10mm |
The above specifications & photos are for reference, other specification may be available as per demand.
