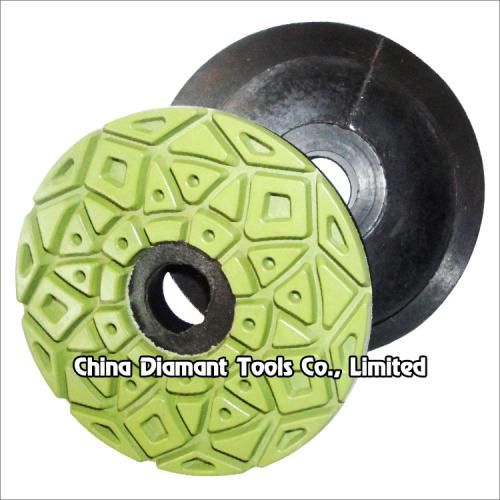

Edge polishing diamond pads chamfering wheel for stone - snail Lock backer

item No : EPP-02-125
Diameter: 125mm
Bond type: resin
Thickness: 10mm
Grit: #50-#3000
Holder: snail lock backer
Using type: wet

Edge polishing diamond pads chamfering wheel for stone - resin bond snail Lock backer


This resin bond diamond pads / chamfering wheel with snail Lock backer designed for polishing straight or beveled edge of natural or artificial stone by single or multiple head automatic edge polishing machines, side-lines and circles grinding machine with high glossy degree and long working life.


It is usually used to edging and chamfering the countertop and arc slabs.

It only requires up to the 3000 grit to successfully polish edges. It does not change in the color of the stone itself, with glazing fast, good brightness and not fade.

Wet polishing with water feeding.


The pads backed with common snail lock adapter which can be easily installed and quick changed on the polishing machines. The pads simply fit into place and lock on with a twisting motion. To remove the pads simply untwist and remove, then replace with the next grit. The “twist and lock” design saves time and increases productivity.


Diamond grit No.: 50#, 100#, 200#, 400#, 800#, 1500#, 3000#.

Holder: snail lock.


Code No.

Diameter

Height Grit No.
EPP-02-125

125mm(5")

10mm

50# - 3000#


The above specifications & photos are for reference, other specification may be available as per demand.
