Vacuum brazed diamond beads of wire saw for marble travertine soft stone cutting
Diameter: 6.3-11.5mm
Beads type: vacuum brazed
Fixing type: steel wire + spring
Materials cutting: marble,travertine,soft stone

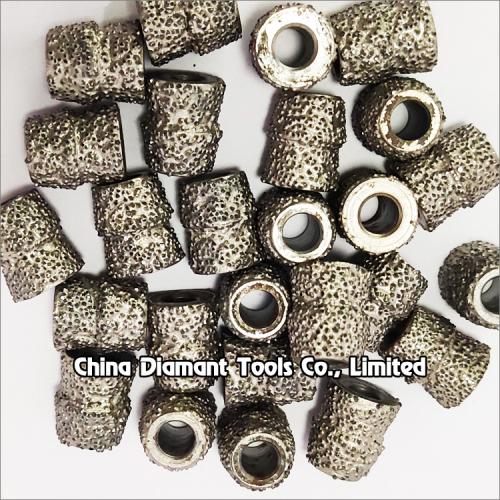

Vacuum brazed diamond beads of wire saw for marble travertine and soft stone cutting
Diamond beads are the main part of diamond wire, vacuum brazed diamond beads bring extra sharpness, it is specially designed for fast cutting of marble travertine and other soft stones, to fit the project whose cutting speed is required.

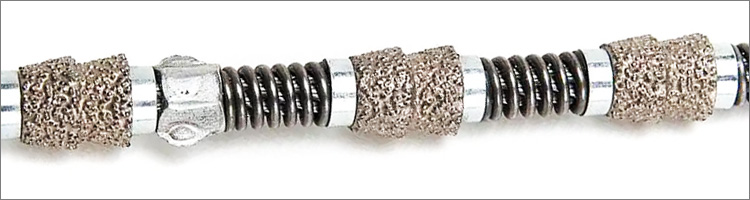

This type diamond beads is usually fixed on the steel wire by springs to cut marble limestone or soft stone in quarry.
High bonding strength, high cutting efficiency, and long lifespan, the cutting speed is around 30-40% faster more than the sintered beads.
| Code No. |
Diameter
|
Working Length
|
Material Cutting
|
| DB-VB1-11.5 |
Ф11.5mm
|
6.4 |
marble travertine soft stone ... |
| DB-VB1-11.0 | Ф11.0mm | 6.0/6.4 | |
| DB-VB1-10.5 | Ф10.5mm | 6.4 | |
| DB-VB1-9.0 | Ф9.0mm | 6.0 | |
| DB-VB1-8.5 |
Ф8.5mm
|
6.0 | |
| DB-VB1-7.3 | Ф7.3mm | 7.0 |
Please inform the following if you would like to place order:
Code No. of diamond beads
Diameter of diamond beads
Inner hole size of diamond beads
The hole is with or without Screw
Material Cutting (For granite, marble, concrete, or other material? Hard, medium, soft, or abrasive?)
Order Quantity (How many pcs)
