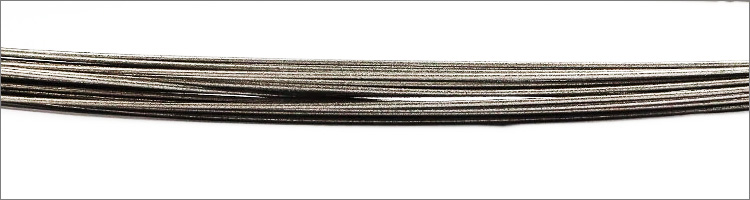

Ultra-thin electroplated diamond wire saw
Diameter: 0.17mm-1mm
Fixing type: electroplated
Materials cutting: crystal,ceramic,glass,silicon,sapphire,etc.

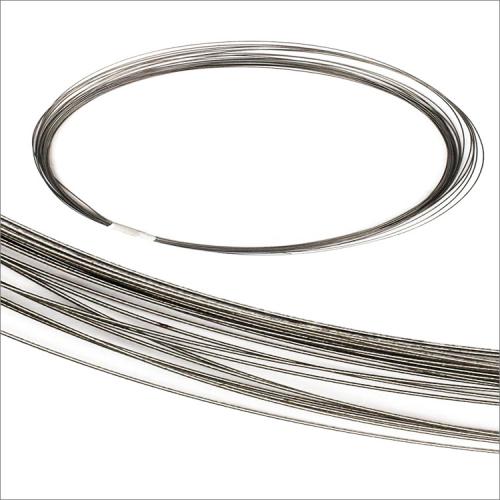

Ultra-thin electroplated diamond wire saw
The wires are used in manual, in-line, multi-wire cutting machines, it can replace the cutting process of light abrasive, they are perfect for precise cutting various types of artificial crystal, ceramic, quartz glass, monocrystalline silicon, polycrystalline silicon, sapphire and special metal materials and so on. Also applies to laboratory or research institutes to conduct research.
Features:
1. Diameter: 0.17mm/0.20mm/0.27mm/0.30mm/0.35mm/0.45mm/0.5mm/0.6mm/1mm, diameter deviation ≤ 0.01mm;
2. Cutting wire material: imported high-quality and strength steel cutting wire;
3. Diamond grit: 5μm-60μm, we can design according to the customer's requirements;
4. Tensile strength: 3200-3400Mpa;
5. Wire length: we can made according to user's requirements.
