Multi-layer electroplated diamond beads of diamond wire saw for marble travertine cutting
Diameter: 10.5-11.5mm
Beads type: electroplated
Fixing type: steel wire + spring
Materials cutting: marble,travertine,soft stone

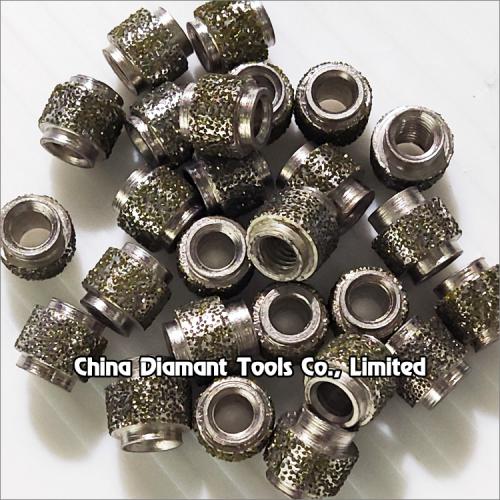

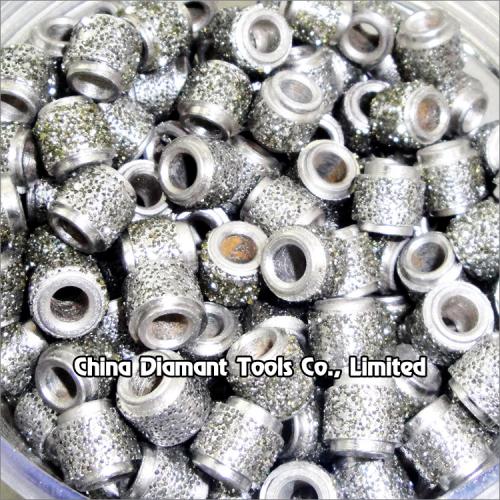

Multi-layer electroplated diamond beads of wire saw for marble travertine cutting

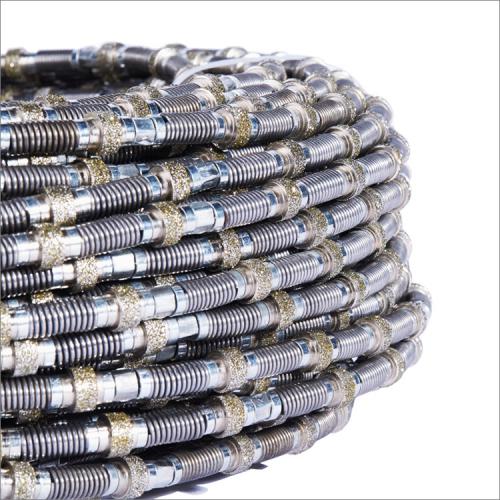

Diamond beads is the main part of diamond wire, this type electroplated diamond beads is usually fixed on the steel wire by spring and used to cut marble, travertine or other soft stone in quarry.
| Code No. |
Diameter
|
Material Cutting
|
| DB-S-11.5 |
Ф11.5mm
|
marble travertine soft stone |
| DB-S-10.5 | Ф10.5mm |
Working width: 6.0 or 7.0mm, inner hole size: 5.1/4.0/3.5mm, screw of hole: with or without.
The about specifications & photos is for reference, other specification may be available as per demand.
Please inform the following if you would like to place order:
Code No. of diamond beads
Diameter of diamond beads
Inner hole size of diamond beads
The hole is with or without Screw
Material Cutting (For Granite, Marble, Concrete, or other material? Hard, Medium, Soft, or Abrasive?)
Order Quantity (How many pcs)
