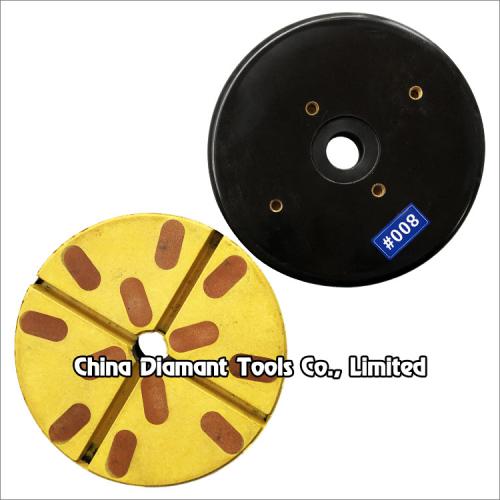

Diamond polishing discs for stone granite marble slabs - resin bond
Diameter: 100mm-200mm
Body: plastic base with screw holes
Segment bond: resin bond
Segment size: 42x20x20mm
Segment No.: 6-15pcs
Diamond grit: #500-#3000
Diamond polishing discs for stone granite marble slabs - resin bond

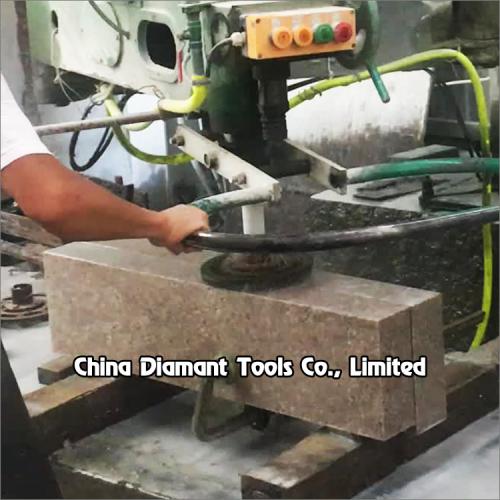

Resin bond diamond disc which is made by using plastic disc with resin segments for smooth polishing granite marble various stone slab surface in automatic grinding machines or single head polishing machines.
The overall polishing effect can be reached easily if it is used in conjunction with metal bond grinding disc for initial grinding.
Different formulas of resin segment can be offered, such as sharp type or durable type.
Wet use only with sufficient water.
Boby: plastic base with screw holes.

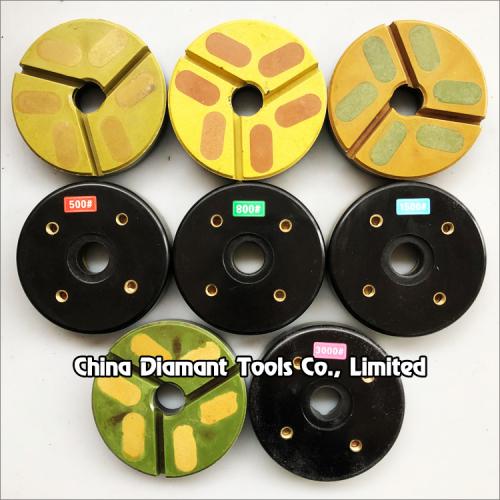

Regular diamond grit No.: #500, #800, #1500, #3000.
| Code No. |
Diameter |
Segment Size/No. | Grit No. |
| DPW-R-02-100 | 100mm(4") | 42*20*20mm*6pcs | #500 - #3000 |
| DPW-R-02-125 | 150mm(5") | 42*20*20mm*6pcs | |
| DPW-R-02-150 | 150mm(6") | 42*20*20mm*12pcs | |
| DPW-R-02-200 | 200mm(8") | 42*20*20mm*12pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
