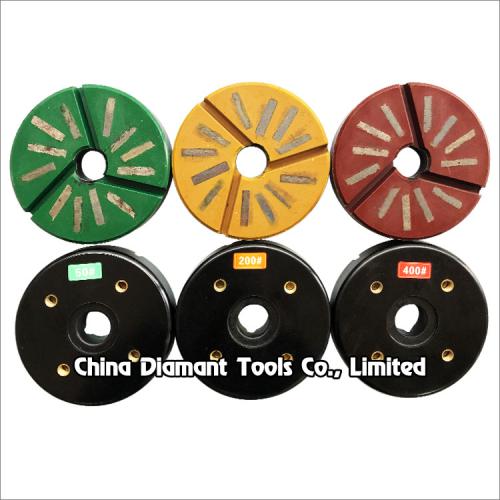

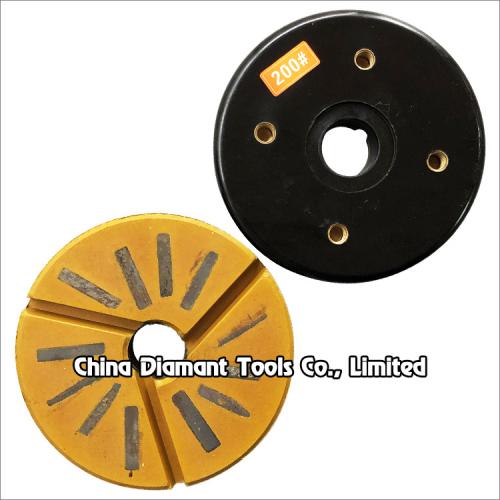

Diamond polishing discs for stone granite marble slabs - metal bond & resin filled
Diameter: 100mm,150mm,200mm
Body: plastic base with screw holes
Segment bond: metal bond resin filled
Segment size: 40x8x10mm
Diamond grit: #50-#400
Diamond polishing discs for stone granite marble slabs - metal bond & resin filled

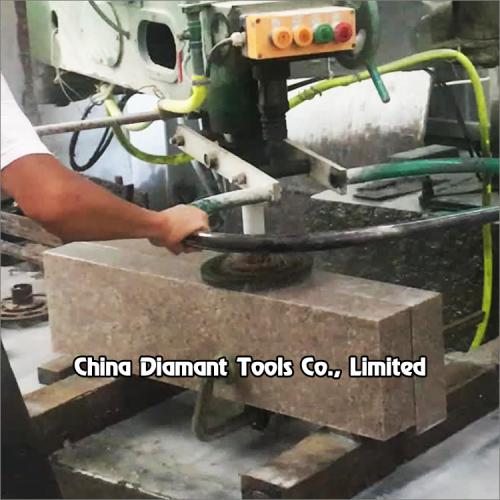

Metal bond & resin filled diamond polishing discs for rough-polishing granite marble various stone slab surface in automatic grinding machines or single head polishing machines.
Wet use only with sufficient water.
Characteristic : high polishing efficiency, strong abrasion strength, it can improve the productivity and slab quality, besides making the more calm and elastic during working.
Thickness: 23mm.
Bore size: 25mm.
Base: plastic back with 4 M8 screw holes.
Regular diamond grit No.: #50, #100, #200, #400.
| Code No. |
Diameter |
Segment Size | Grit No. |
| DPW-MR-01-100 | 100mm(4") | 40*8*10mm | #50, #100, #200, #400 |
| DPW-MR-01-125 | 125mm(5") | ||
| DPW-MR-01-150 | 150mm(6") | ||
| DPW-MR-01-200 | 200mm(8") |
The above specifications & photos are for reference, other specification may be available as per demand.
