Diamond grinding shoes concrete grinding pads for Lavina floor grinders - mountain shape segments

Diamond grinding shoes concrete grinding pads for Lavina floor grinders - mountain shape segments

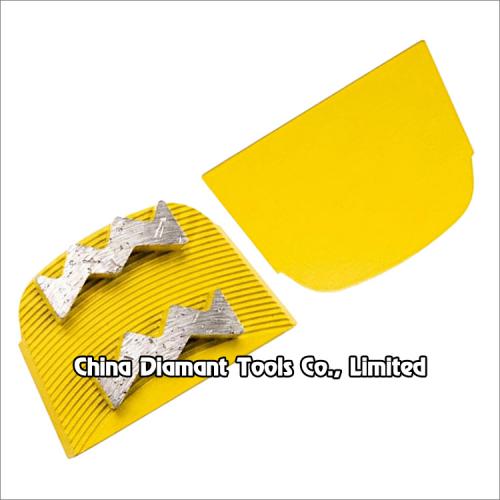

Diamond grinding shoes concrete grinding pads with metal bond mountain shape segments used on Lavina floor grinders for rough leveling and grinding of concrete terrazzo stone floor, such as underground parking lot, factory floor, etc., to remove the attachment on its surface.

Lavina diamond pads with quick lock plate provide convenient and economical way for concrete floor preparation and grinding. The diamond grinding pad is held into the right position by a combination dovetail-magnet system, which prevents the grinding pad from slipping during the grinding or preparation work. Quick change diamond grinding pad requires quick change plates for attachment. The plates can be reusable and make the system more economical than traditional welded-button plates.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits(#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200) can be chosen.

For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).

Welding type of the product in the above photo: capacity discharge welding.

High frequency welding is available with regular flat steel base.

The above specifications & photos are for reference, special segment size or bond may be available as per demand.
