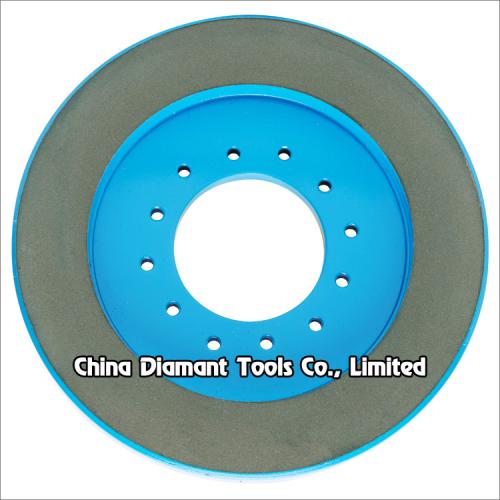

Diamond squaring wheels for trimming ceramic tile - resin bond, continuous rim, wet use
This resin bond continuous rim diamond squaring wheels are used to make modifying the uprightness of ceramic tiles four edges in order to achieve scheduled size, it is a necessary squaring tool for big size glaze ceramic tiles, porcelain tiles and polished porcelain tiles.
This squaring wheel is used after the metal bond diamond squaring wheel, on continuous automatic polishing line for making fine squaring on ceramic tiles edges in order to achieve high precision size, flat and smooth effect.
Our resin-bond squaring wheels are approved for their good sharpness excellent abrasiveness, high working effect.
Suitable machines: KEDA, ANCORA, BMR, PEDRINI, KEXINDA, LIBEN, KELID etc., various squaring machines.
Ceramic tile type: Various porcelain tiles, vitrified tiles, crystal tiles, floor tiles, wall tiles etc. in different sizes like 600x600, 800x800, 1000x1000, 600x1200, 300x300, 300x600 ...
Using type: wet use.
Regular diamond grit: #80/100, #100/120, #140/120, #140/170, #200/230.
Code No. |
Diameter |
Segment Size (W*H) |
Grit |
DSWC-R1-200 |
200mm |
25*15mm |
#80/100, #100/120, #140/120, #140/170, #200/230 |
DSWC-R1-250 |
250mm |
40*15mm |
|
DSWC-R1-300 |
300mm |
40*15mm |
The above specifications & photos are for reference, other specification may be available as per demand.
