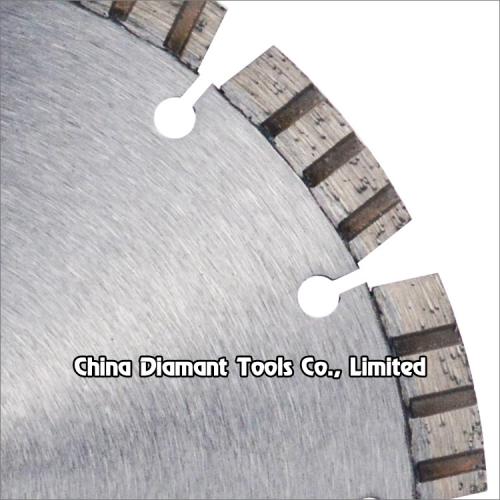

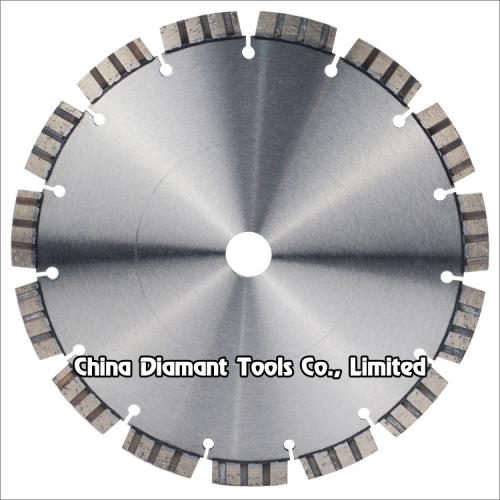

Diamond saw blades for general purpose cutting - laser welded, turbo segments
Diameter: 105-600mm
Bore: 25.4/50/60mm
Segment height: 10/12mm
Segment type: turbo segments
Production process: laser welding
Diamond saw blades for general purpose cutting - laser welded, turbo segments
General purpose diamond saw blades with straight turbo segments for fast cutting various material such as concrete, asphalt, brick, block, masonry, granite, marble and other materials, which is a good choice for do-it-yourself contractors or homeowners who need a single blade to cut several different types of material.
Dry or wet use, water coolant is benefit for longer cutting life.
Usually used on: angle grinders, table saws, high speed power saws, masonry saws, walk behind saw, handheld saw machines.
Bore size: 25.4mm, 50mm, 60mm or as per demand
Welding method: laser welded.
| Code No. |
Diameter (mm/inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
| SBGP-02-105 |
105mm(4") |
40x2.2x10 |
8 |
| SBGP-02-115 |
115mm(4.5") |
40x2.2x10 |
9 |
| SBGP-02-125 |
125mm(5") |
40x2.2x10 |
10 |
| SBGP-02-150 |
150mm(6") |
40x2.2x10 |
12 |
| SBGP-02-180 |
180mm(7") |
40x2.4x10 |
14 |
| SBGP-02-200 |
200mm(8") |
40x2.8x10 |
16 |
| SBGP-02-230 |
230mm(9") |
40x2.8x10 |
18 |
| SBGP-02-250 |
250mm(10") |
40x3.0x10/12 |
18 |
| SBGP-02-300 |
300mm(12") |
40x3.0x10/12 |
21 |
| SBGP-02-350 |
350mm(14") |
40x3.2x10/12 |
24 |
| SBGP-02-400 |
400mm(16") |
40x3.6x10/12 |
28 |
| SBGP-02-450 |
450mm(18") |
40x4.0x10/12 |
32 |
| SBGP-02-500 |
500mm(20") |
40x4.2x10/12 |
36 |
| SBGP-02-550 | 550mm(22") | 40x4.2x10/12 | 38 |
| SBGP-02-600 |
600mm(24") |
40x4.6x10/12 |
42 |
The above specifications & photos are for reference, other specification may be available as per demand.
