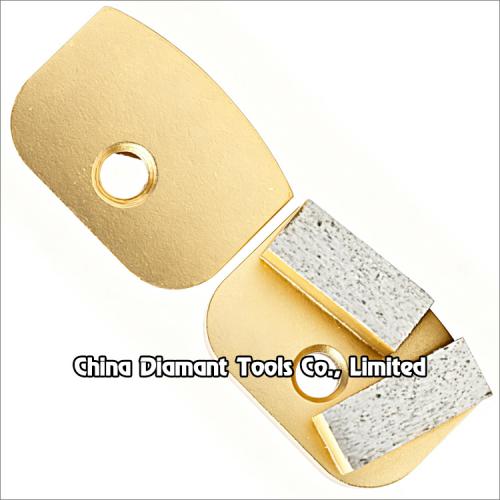

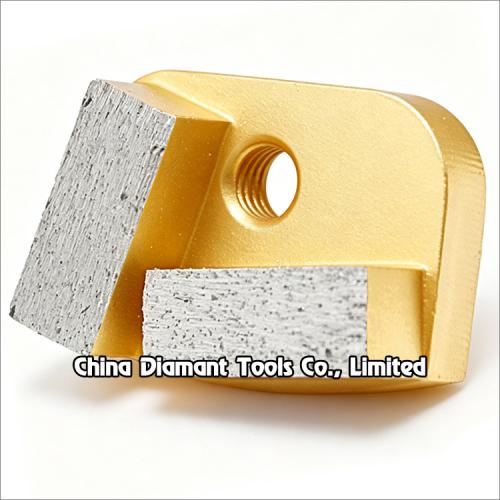

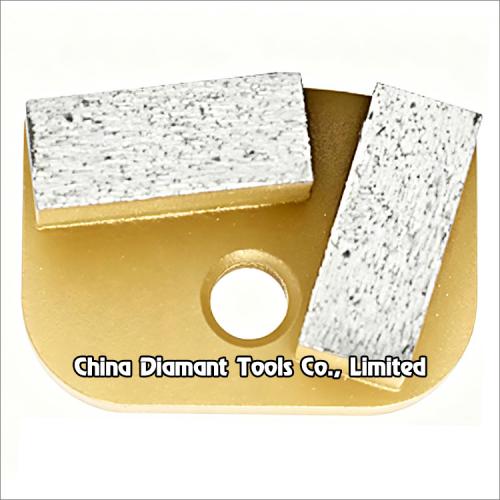

Diamond grinding shoes for Newgrind Rhino floor grinders - double bar shape segments

Diamond grinding shoes for Newgrind Rhino floor grinders - double bar shape segments

This diamond grinding shoe with 2pcs bar shape segments is one of the floor preparation tools used on Newgrind Rhino floor grinders for floor rough leveling and grinding or quick removing various coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on concrete or terrazzo floor surface.

Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient. It's easy to deal with various rough surface, smooth and unbroken edges, low grinding resistance and high efficiency, and it is aggressive leaving and deep to medium scratch pattern, take the floor from coarsely structured surface to pre-polishing.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

Regular diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200.

For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).

For Newgrind Rhino floor grinders.

Segment size & No.: 30x10x10mm*2pcs.

Segment bond: soft, medium, hard.

Diamond grit: #6 - #200.

Dry or wet use.

The above specifications & photos are for reference, other specification may be available as per demand.
