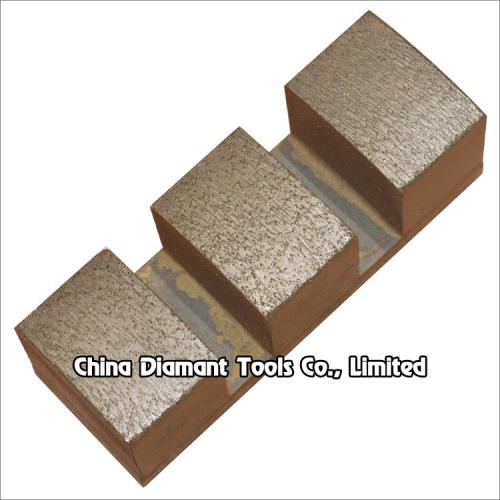

Diamond fickert abrasive for granite - metal bond segmented
Length: 115mm
Bond: metal
Segments size: 40x28x28mm*3pcs
Diamond grit: #30-#230
Production process: sliver welded
Diamond fickert abrasive for granite - metal bond segmented
This type metal bond silver welded diamond abrasive is a diamond segmented brick with steel base support, it is intended for granite slabs calibration to make the surface smooth and ready to go grinding steps, which is the most quality-stable for grinding granite slabs and this type grinding block is usually in use on single head bridge polishing machines to make the calibration and grinding on granite slab or tiles, with the characteristics of stabilization, extremely high output, low consumption, excellent gloss etc.
| Code No. |
Bond |
Length |
Segment Size |
Base |
Grit No. |
| DF-M04-115 |
Metal |
115mm |
40*28*28mm |
Steel |
#35/40, #50, #60, #70, #80, #100, #120, #140, #170, #200, #230 |
The above specifications & photos are for reference, other specification may be available as per demand.
