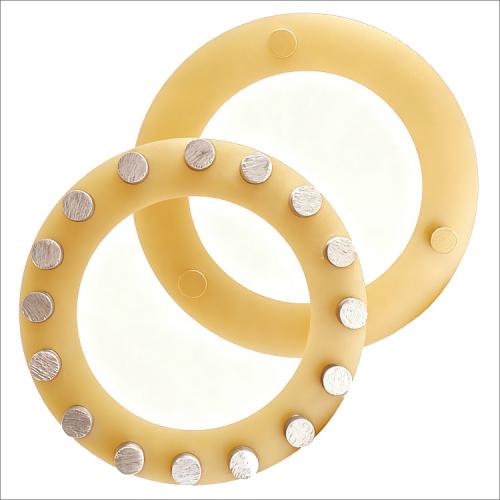

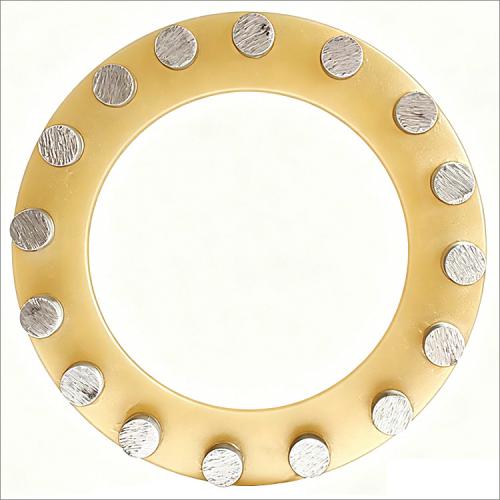

Diamond disc concrete grinding plate for Klindex floor grinders - cylindrical segments

Item No. : DGD-Klindex-01

For Klindex floor grinders

Diameter: 200mm, 240mm

Segment size & No.: 20x12mm*12/16pcs

Segment bond: soft, medium, hard

Diamond grit: #6 - #200

With 3 back plugs

Dry or wet use

Inquiry Now
Detailed Description

Diamond disc concrete grinding plate for Klindex floor grinders - cylindrical segments


This 200mm or 240mm diamond grinding plate with cylindrical segments design fits to most of the single double three heads Klindex floor grinders in the market. It is used for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete terrazzo stone floor surfaces.


It can be used dry, but will give better performance and life used wet.


We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.

For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).


Code No.

Diameter

Segment Size/No.

DGD-Klindex-01-200 200mm

20x12mm*12pcs

DGS-Klindex-01-240

240mm

20x12mm*16pcs


The above specifications & photos are for reference, other specification may be available as per demand.
