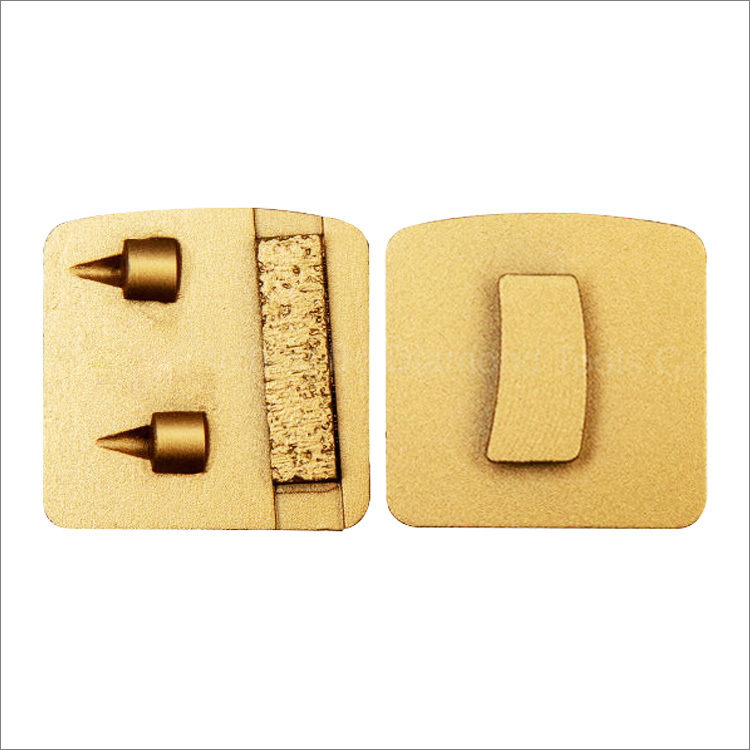

PCD diamond grinding shoe for Klindex floor grinders

PCD diamond grinding shoe with 2pcs quarter PCD and 1pc bar shape diamond segment is used on Klindex floor grinders for grinding and quick removing various coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on concrete or terrazzo floor surface.

Featuring double quarter PCD teeth and a supporting diamond bar, this configuration effectively controls PCD cutting depth, reduces surface gouging, and extends tool life. The segment layout ensures aggressive performance while keeping the finish smoother and machine-friendly.

For Klindex floor grinders.

PCD Segment: quarter(1/4) PCD*2pcs.

Diamond segment: #30, 40x10x5mm * 1pc.

Rotation: clockwise or anticlockwise.

Dry or wet use.

Code No.	PCD Size/No.	Segment Size/No.
DGS-Klindex-PCD01	1/4 PCD*2pcs	40x10x5mm *1pc

The above specifications & photos are for reference, other specification may be available as per demand.
