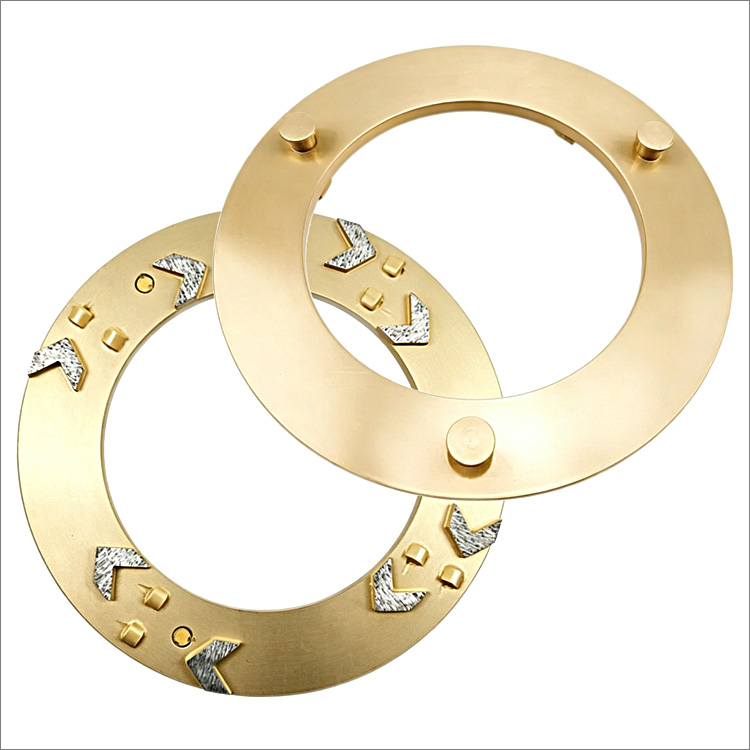

PCD diamond
disc concrete grinding plate for Klindex floor grinders - 8 quarter PCD
+ 8 arrow shape segments
200mm 240mm PCD diamond
grinding shoe with 8pcs quarter PCD and 8pc arrow shape
diamond segments
is used on Klindex floor grinders for grinding and quick removing
various coatings such as paint, varnish, glue, epoxy, acrylic,
screed residue, VCT mastic, black tar adhesive as well as thick
rubber materials on concrete or terrazzo floor surface.
For Klindex floor grinders.
Diameter: 200mm, 240mm.
PCD segment: 1/4 PCD * 8pcs.
Diamond segment: #30, H5mm * 8pcs.
Rotation: clockwise or anticlockwise.
With 3 back plugs.
Dry or wet use.
|
Code No. |
Diameter |
Segment Size/No. |
|
DGD-Klindex-PCD01-200
|
200mm |
8*(1/4
PCD+diamond segments) |
|
DGD-Klindex-PCD01-240 |
240mm |
8*(1/4
PCD+diamond segments) |
The above specifications & photos are for reference, other specification
may be available as per demand.
